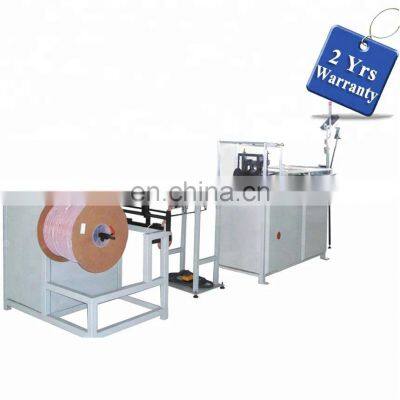

Automatic Twin wire o making machine double wire Forming and Spooling Machine
Videos
Video demonstration only for reference
Video : /watch?v=dzfK0uph2sw
Product Description
Description:
Double loops wire forming and rewinding machine suits to produce double loop wires (twin-ring), which is widely used in notebooks, workbook and calendars etc. It was composed of forming machine, spooling machine and paper cutting machine.
Features:
1, Applicable to nylon-coated wire, tinned wire and galvanized wire, high speed and efficiency.
2. No damage to coated layer of the wire during forming.
3. Widely used in different sizes of coils in the same pitch by replacing the forming mold where the mold can be easily changed and operated.
4. Accurate pitch and standard shape.
Wire Specification:
Speed
| 350~550 loops/min
|
Total power
| Forming machine
| 0.75Kw
|
Spooling machine
| 0.37Kw
|
Paper Cutting Machine
| 0.25Kw
|
power
| 3PH 380V 50/60 HZ(other voltage on request)
|
Net weight
| 500Kg
|
Dimension
| Forming machine
| 2400×650×1700 mm
|
Spooling machine
| 1300×1000×1200mm
|
Paper Cutting Machine
| 600×500×1400mm
|
Wire Specification
Size
| pitch
| Nylon coated wire (mm)
| Tinned wire(mm)
| Wire dia(mm)
| Binding thickness(mm)
| Binding page(page)
|
1/4
| 3:1
| 0.70
| 0.65
| 6.4
| 4.9
| 45
|
5/6
| 3:1
| 0.80
| 0.70
| 7.9
| 6.3
| 60
|
3/8
| 3:1
| 0.80
| 0.75
| 9.5
| 7.9
| 70
|
7/16
| 3:1
| 0.90
| 0.80
| 11.1
| 9.3
| 85
|
1/2
| 3:1
| 0.90
| 0.85
| 12.7
| 10.9
| 100
|
9/16
| 3:1
| 1.00
| 0.90
| 14.3
| 12.2
| 120
|
5/8
| 2:1
| 1.10
| 1.00
| 15.9
| 13.4
| 130
|
3/4
| 2:1
| 1.20
| 1.10
| 19.1
| 16.6
| 160
|
7/8
| 2:1
| 1.20
| 1.20
| 22.2
| 19.7
| 190
|
1
| 2:1
| 1.25
| 1.20
| 25.4
| 22.9
| 225
|
1 1/4
| 2:1
| 1.50
| 1.45
| 31.8
| 27.8
| 270
|
Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min
B: Paper thickness in GSM
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 10 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
