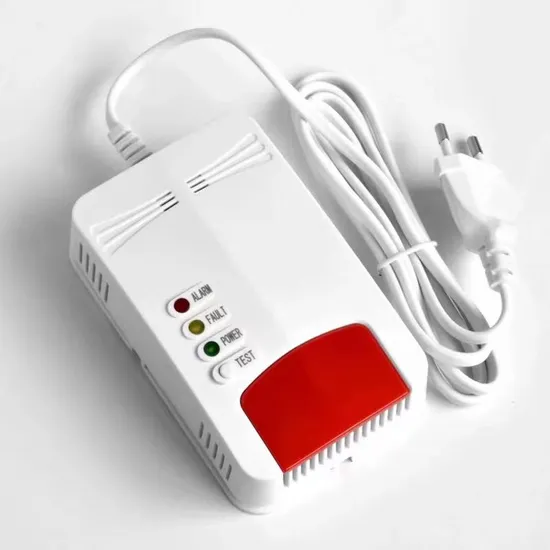

Wired Wireless Co Gas Detector with Relay Output and Solenoid Valve (ES-6505GD)

Product Description

Wired Wireless CO Gas Detector with Relay output and solenoid valve (ES-6505GD)
Features/Specification
High reliability sensor
Auto reset after alarm
MCU processing adopted
fault automatic detected
Gas type:natural gas/LPG /CO
SMT design,high stability
Technical Specification
Operating voltage: AC 85-260V
Static current :<= 100mA
Alarm current :<= 110mARating Power: <= 3W (AC 220V supply)
Warm-up Time: 180S
Alarm Level:10%LEL(CH4);
Alarm Level CO:100PPM
Power: LED Constant Green
Alarm: LED Flashing Red Rapidly (CH4)
LED flashing red slowly (CO)
Sensor Failure: Fault LED Constant Yellow
Alarm Reset:Automatic reset when leaked gas clears
Sound Level: >= 85dB/m
Operating temperature: -10 ºC~ +50 ºC
Environment humidity: <= 95 % RH (no congelation)
Installation mode: wall mounted
Alarm output: relay output/sound & flash alarm
Networking: RF 315MHz or 433MHz (wireless type)
Radio distance: 100m in open area (wireless type)
Execute criterion : GB15322.2-2003
Outline size : 123*78*40mm
Product Profile
Installation
Wired Wireless Optional

Type	Output
Wired	Relay NO/NC & Sound
Wireless	RF Signal & sound

DC AC types optional

Connectors for solenoid valves
Packing Box
Ease Security is a Hi-tech enterprise which specializes in anti-theft security alarm products and fire alarm products. Our service range covers R&D, manufacture and marketing. Our current main products are fire alarm panel,home alarm system, outdoor active IR beam detector,PIR detector, smoke detector, gas leakage detector, door magnetic switch, panic button, alarm siren and etc.
we are offering you following:

Top quality, product quality is the life of the company;

We have built a whole quality control system according to ISO 9000. Our QC inspects each product in every working procedure to ensure the quality exactly.

Competitive price, price helps our customer be competitive in the market;

We are trying to improve the efficiency in every process to lower the cost without affecting quality.

Excellent service, service is the basis of the company.

We always belive that "Win-Win" strategy is the basis of a long-term cooperation relationship. We are looking forward to establishing a good business relation with you.

---
