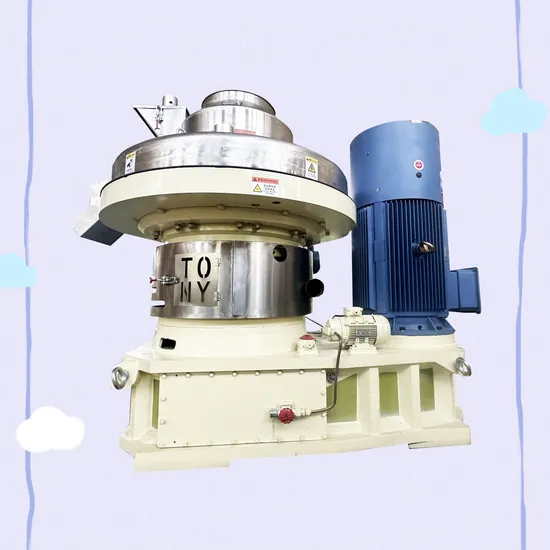

High-Productivity Tony Pellet Mill Pellet Press Pellet Machine Tyj860-III

Product Description

High-Productivity TONY Pellet Mill Pellet Press Pellet Machine TYJ860-III
Company Introduction
Shandong Tony Environmental Protection Technology Co., Ltd is an intergrated enterprise spechializing in developing,anufac-turning and intenational trade of pellet equipment for over 20 years.Main products are biomass ring die and flat die pellet machine,biomass pellet line,feed pellet machine,drying,crushing equipment,cooling screening,mixing and environmental protection equipments. TONY main processing areas are logs or furnature waste,agricultural crop stalks,animal feces and so on. Looking to the future, we sincerely hope to establish a long-term reliable cooperation relationship with clients all over the world.
Advantages of our machines
Industry innovation to cancel the reducer coupling, motor upright and large gear transmission method combined. Adopting motor shaft and gear shaft direct connection connection method, power transmission is more powerful, anti-torque is greater, stability is stronger, reducer maintenance rate is lower
Industry innovation has improved the bearing chamber process:
A. Modified the bearing chamber, replaced the sealing method and forged tempered wear-resistant materials, effectively avoiding the dust sawdust falling into the bearing chamber
B. Changed the bearing chamber, eliminating the traditional lubrication method, the industry's first lubrication method for the timing of adjustable grease filling and increase the oil level alarm device, to effectively avoid excessive grease filling waste.
Industry innovation to increase the reducer at the same time reduce motor consumption, reducer box is large, gear increase, higher yield, lower power consumption.
Industry innovation spindle load design working conditions out of several times, spindle design process is more accurate, the installation method for electric heating without smashing touch installation, spindle life longer.
The line adopts customized special reducer tailored for Tony pellet machine design, reducer more suitable for Tony pellet machine.
Detailed Photos
Product Parameters

Model	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ551-II	90-110	1-2	5.5	2364*1550*1705
TYJ551-III	132	2-2.5	5.5	2364*1550*1705
TYJ760-III	160/185/200	2.5-3.5	9	2564*1750*2150
TYJ860-III	220-250	3-5	13.5	2664*1950*2150

Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree),
bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass,
bagrass, palm fiber, waste paper, non-physical material
Size:2-4mm (All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet
Spare Parts for pellet press
Main Features
1) Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting.High
tempreture/pressure,and low temporeture/pressure warning and automatic lubrication.
-----Other suppliers did not have this system,they have to lubricate each working time for about 8hours.
2) Big gear Transmission for easy operation and lower maintenance.Two big gears,each weight is more than 1.3ton.
-----Other suppliers all use the reducer transmission,which is easy to break,and higher maintenance.
3) 4 rollers working, increasing press rate and capacity.
-----Other suppliers all use the 2 rollers.
4) Double layers ring die type, longer working lifetime.
Test Machine
Customer Case
Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system

Our promise to you...I promise to provide a high quality product at a fair price that will last for years and years, shipped as quickly as possible along with professional engineers support you require to get you up and running.
You can call me anytime on trademanager. I'm always working and I never sleep! (Ok, maybe sometimes.)
All the parts of products are rechecked before transportation, therefore the clients will receive the best quality products..
Free consulting service, please contact us when you have any questions about biomass pellet machinery.

---
