Automatic Plastic Cup Thermoforming Machine Disposable Plates and Glass Making Machine

Product Description

Automatic plastic thermoforming machine disposable plates and cup making machine
Product Description

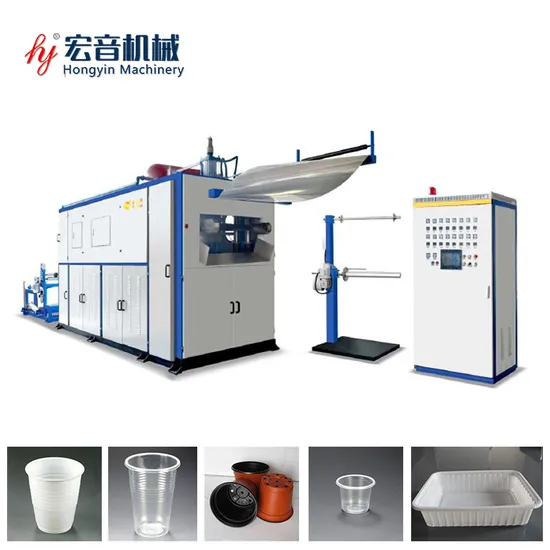

The full automatic plastic cup thermoforming machine with robot stacking is a mature type equipment, which has been developed and produced with many years of experiences of our company. It adopts stable hydraulic system to control, it is stable, noise small, mould locking ability is strong and quality is high. It mainly consists of material rack, single forming and cutting station, stacking robot, finished product conveyor, waste rewinding.
Application:
The production line could mainly use for producing disposable cup, PP cup, PVC cup, PS cup, cold drink cup, yogurt cup, jelly cup, ice cream cups, snack boxes, plastic bowls, milk tea covers, etc. At the same time, it also can process medicine, light industry, textile, tourism, toys, and other relevant plastic packaging products.
Product samples:
Product Parameters

1. Power Supply				380V/3P/50HZ
2. Material				PP/PS/PET/PVC plastic thermoforming sheet
3. Driving Method				Hydraulic control
4. Forming Area				750*420mm
5. Sheet Thickness				0.25~2.0mm
6. Forming Speed				<=35cycles<>
7. Sheet Width				W=750mm (adjustable)
8. Air Pressure				0.6~0.8Mpa
9. Air Consumption				2200L/min
10. Air Compressor Exhausting Capacity				2200~3000L/min
11. Water Consumption				<=0.5m³
12. Machine Dimension				4.0*1.6*2.5m
13. Total Power				160 KW

Detailed Photos
The machine is with high efficiency, energy-saving, safety, environmental protection, it could produce high qualified products.
It has manual, semi-automatic, automatic, three operation functions optional.
Raw materials to adapt to the machine widely: such as PS, PP, PVC, PET, ABS, and other plastic materials.
DB-750 Plastic cup thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled bye micro PLC. It operates with man-interface, which can works all by itself. It combines the material feeding, heating, forming, cutting and transporting into one process.
Material Feeding Area
Material sheet is driven by pin chain. The feeding width could be adjusted by parameter setting through touch screen.
The machine is heating by ceremic bricks when forming products.
It uses international famous brands of electric parts, the operation is stable, quality is reliable and lifetime is long.
It is completely automatically, productive speed is fast.
Different products can be produced with different moulds.
The structure of the whole machine is compact, one mould has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
The design of the mould is advanced and special, heat the thermoplastic plastic flakeboard and put on the mold, pull the piston, give the pressure to the air, keep the flakeboard close to the inside of the mold to form, then, cut and automatically blow the product.
Stacking by robot Suitable for cups, bowls, food containers, trays, etc.
Machine and mould manufacturing:
The machine frame is made of square steel, its lifespan is longer and makes the machine running very stable.
We have three sets CNC machines for producing mainpart of machine and moulds, Mould production capacity is about 5-10 sets moulds per month.

---
