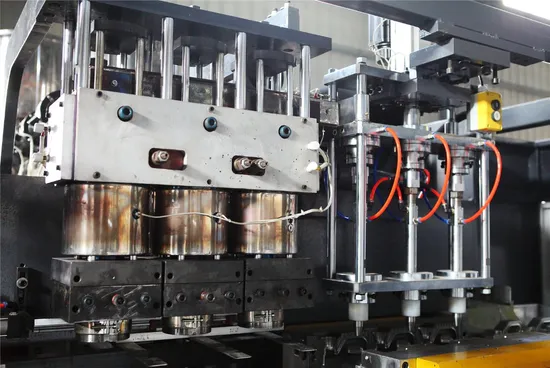

PE Fully Automatic Blow Molding Machine for HDPE Botlle

US$10,000.00-20,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
SYJII-SF-80-3
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transaction Mode
Fob
Transport Package
Wooden Packing
Specification
4000MM*3500MM*2500MM
Trademark
SJ
Origin
China

Product Description


Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.
Code SYJII-SF-80-3
Max Product Volume 2L
Output 150pc/h
Machine Size 4000mm*3500mm*2500mm
Weight 6000KGS
Voltage&Frequency Clients' Specified
screw Diameter 80mm
L/D Ratio 1:23
Die Head Qty 3pcs
Max Center Distance of Die Head 180
Extrusion Motor Power 30KW
Total Power 70KW
Average Energy Consumption 20kw
Extruder heating power 18kw
Number of hating zone 4
Oil pump drive power 15KW
Max plasticizing capacity 90-100kg/h
Platen Size 420mm*400mm
Max mould size 550mm*380mm*220mm
Clamping force 110KN
Opening Stroke 200mm-250mm
Moving Stroke 600mm
Cooling water pressure 0.3MPa
Water consumption 30L/min
Air pressure 0.6Mpa
Air consumption 0.6centiare/min
