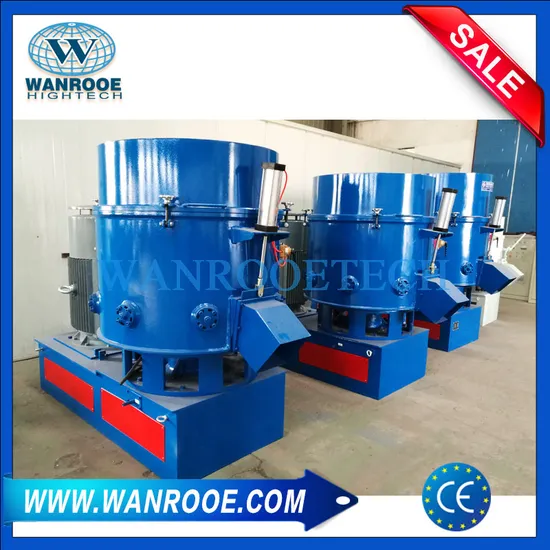

High Speed Waste Plastic Film Agglomerator Woven Bag Compactor Machine

Product Description

High-Speed Waste Plastic Film Agglomerator Woven Bag Compactor Machine
Application&Features:
The agglomerator(plastic film granulator) is a kind of waste thermoplastic thin films, and wall thickness is less than 2 mm of products can granulated immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.

Working principle:
Putting the waste into machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear ,then the material along the pot body wall by the knife dish centrifugal force function ,at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of material itself and friction of pot wall and blades produce much friction heat under the high speed, making the materials temperature rises to the half-plastic condition and connects to small lump. Before the materials will block, advanced preparation quantitative water will all spray to the material. The cold water touch the hot materials will gasify and take out the surface heat soon , making the surface of the materials cool quickly and avoid blocking, then after crushing effect between rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.
1.The PP/PE Plastic Agglomerator is used for fast recycling of waste films,woven bags.
2.The Machine can quickly granulate used thermoplastic film or the thermoplastic products which thickness less than 2mm.
3.It's applicable to the agglometating of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film.
4.The granules produced by the plastic agglomerator can be supplied to pelletizing machine for further granulating or just fed to extruer and injection machine.
This agglomerator is mainly used for cutting and recycling thermoplastic film, soft polyvinyl chlorid (PVC) waste chemical belt etc, such as garbage bags, carry bags and milk pouches.

It is for for augmentation of the bulk density of the LDPE, HDPE , PP , BOPP, PET film & bags flakes.
Features:
Strong design of double-bearing for holding the main shaft
High performance blades
Temperature control
Water flushing automatically
Motor power from 18.5kw to 132kw
Processing capacity from 50kg/h to 500kg/h

Technical Parameters:

Model	PNAG-100	PNAG-200	PNAG-300	PNAG-500	PNAG-600	PNAG-800
Volum(L)	100	200	300	500	600	800
Output(kg/h)	100	150	200	300	400	550
Fixed and Rotating Blades QTY	2+6	2+6	4+8	4+8	4+8	4+8
Main Motor(kw)	37	55	75	90	90-110	132

---
