The Factory Price 3.5 Inch 320X480 Dots Interface MCU TFT LCD Display

Product Description

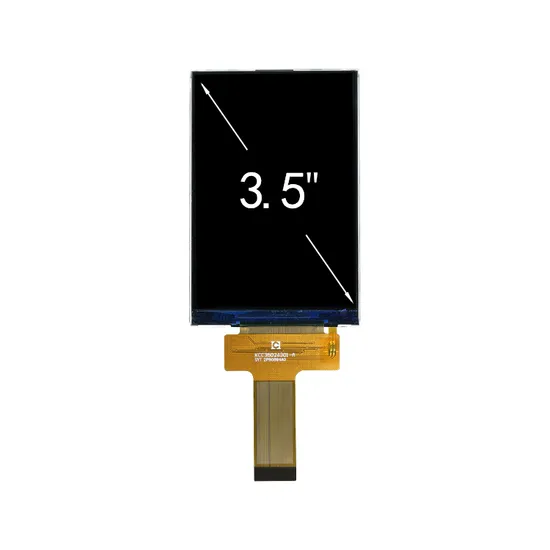

The Factory Price 3.5 Inch 320X480 Dots Interface MCU TFT LCD Display K350C26301 is a 3.5 inch tft display module with optional resistive touch screen and capacitive touch screen control with a resolution of 320×480 pixels. This size TFT LCD is in portrait mode with wider viewing angle by POL adjustment, Left: 70 / Right: 70 / Top: 60 / Bottom: 60 degrees (typical). Optional RTP or CTP.
This K350C26301 module has built-in ILI9488 controller IC, supports MCU interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 480 nits (typ), and the contrast ratio is 800:1. This module is a beauty equipment, medical Industrial ideal for instruments, etc. The module can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C.
DRAWING General Specifications

Item	Contents	Unit
Size	3.5	inch
LCM Dimension	54.50(W)* 82.90(H) * 2.2(T)	mm
LCD Active Area	48.96* 73.44	mm
Number Of Dots	320×480	pixel
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ILI9488
Interface Type	MCU
Operating Temperature	-20ºC~ 70ºC
Storage Temperature	-30ºC~ 80ºC
Backlight Type	6 LEDs
Brightness	480	cd/m2

Interface LCM PIN Definition

NO.	Symbol	Description
1	VDD	POWER SUPPLY
2	GND	Ground
3	LEDA	BACKLIGHT ANODE
4	LEDK	BACKLIGHT CATHODE
5	RESET	Reset pin
6	CS	Chip enable, Low-active.
7	RS	Data/Command register address.
8	WR	Write signal, rising-edge-trigger.
9	RD	Read signal, rising-edge-active.
10	GND	Ground
11	DB0	Data Bus
12	DB1	Data Bus
13	DB2	Data Bus
14	DB3	Data Bus
15	DB4	Data Bus
16	DB5	Data Bus
17	DB6	Data Bus
18	DB7	Data Bus
19	DB8	Data Bus
20	DB9	Data Bus
21	DB10	Data Bus
22	DB11	Data Bus
23	DB12	Data Bus
24	DB13	Data Bus
25	DB14	Data Bus
26	DB15	Data Bus

ABOUT US
SGS Certification
Experimental equipment Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2001 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.

---
