Basic Info.
Controlling Mode
Artificial
After-sales Service
Online Services and Video Services
Target Audience
Wood Working Population, Wholesaler and Retailer
Special Service
Optional Upgrade
Character
Thick and Solid
Transport Package
Plywood Cases
Specification
1100*1030*1600
Product Description

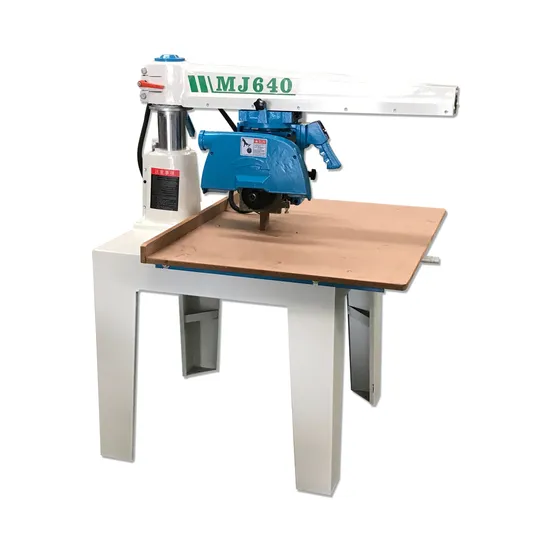

rotary radial arm saw 640 model
Product Parameters
Technical Data Sheet for Radial Arm Saw Machine
| Model | MJ640 | MJ930 | |
| Saw blade diameter | 350/360mm | 350mm/360mm | |
| Maximum sawing length or width | 640mm | 930mm | |
| Diameter of the blade | 350mm | |
| Diameter of the spindle | 50mm | |
| Maximum cutting thickness | 120mm | |
| Rock-arm revolving angle | 45°(each at left or right) | |
| Main spindle level revolving angle | 360° | |
| Main Spindle speed | 2860r/min | |
| Motor power | 100%Pure copper motor 2.2kw(3HP)/3kw(4HP) | |
| Voltage | 220V/380V(customized) | |
| Dimension | 1100*1030*1600mm | 1300*1030*1600mm | |
| Weight | 258kg | 288kg |
Product Description
It can cut wood vertically, horizontally, and at a 45-degree angle to meet all your wood cutting needs.
Pure copper motor, ultra-long life
A more ergonomic handle allows you to check the saw blade angle in real time to prevent mistakes.
Company Profile
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .
>>
