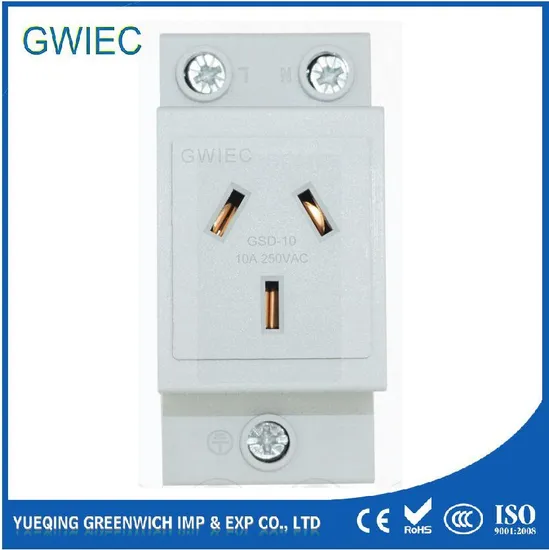

OEM 440V Gwiec 16 AMP Modular Switch Au EU Module DIN Rail Socket DIN Mounted Gpo

Product Description

Description:
Modular socket has good reliable contact, which is suitable for used with other modular terminal electrical devices Widely used in building, mine enterprise, station,port, shop, office, laboratory, residence and so on. Great for industrial electric workshop use. US buyers may need buy another voltage converter to use this product normally, but here is not included. • Product Name : Modular Socket;Socket Type : AU Plug;Rated Current : 16A Rated Voltage : AC 250V;Pole Quantity : Single Pole Total Size(Approx) : 75 x 35x 65mm/ 3" x 1.4" x 2.6" (L*W*H);Rail Mounting : 35mm DIN Rail External Material : Plastic;Color : grey white Weight : 99g;Package : 1 x Modular Socket
AC30 series Din rail modular socket
Application
(AC30 Moudular Socket)AC30 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.
Specification

Type	Rated current (A)	Pole S	Width(mm)	rated voltage (V)	Connection capacity
AC30-10/2	10	2	18	230	≤16mm2
AC30-16/2	16
AC30-25/2	25
AC30-10/3	10	3	36
AC30-16/3	16
AC30-25/3	25		54
AC30-16/4	16	4	54	400
AC30-25/4	25		72

Technical Data

Frequency:50 or 60Hz.	Overvoltage category:3
Rated insulation voltage Ui:500V	Pullution degree:2
Rated impulse withstand voltage	Protection class:IP20
Uimp:5000V	Standard mounting:35mm DIN rail
Dielectric test voltage at ind.Freq.	Ambient temperature:-5oC to +40oC
for 1min:2.8kV	Storage temperature:-25oC to +70oC

Application (AU5 Modular Socket )ACF and ACG 20 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil industrial switchboards.Specification

Type	Rated current(A)	Standard	Width(mm)	Connection capacity
ACF	10,16,25	France	44.5	≤6mm2
AU5	10,16,25	Germany	44.5	≤6mm2

Technical Data

Frequency:50 or 60Hz. Electrical life: 5000times	Mounting category:2,3
Rated insulation voltage Ui:500V	Pullution degree:2
Rated impulse withstand voltage	Protection class:IP20
Uimp:5000V	Standard mounting:35mm DIN rail
Dielectric test voltage at ind.Freq.	Ambient temperature:-5oC to +40oC
For 1min.: 2.8kV	Storage temperature:-25oC to +70oC

FAQ 1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
*****************************************************************************************************************************************************
With more than 15 years OEM experience, we can provide professional solutions for customers.
