Paper Roll Sheeting Machine with Airhole Die Cutting Unit

Product Description

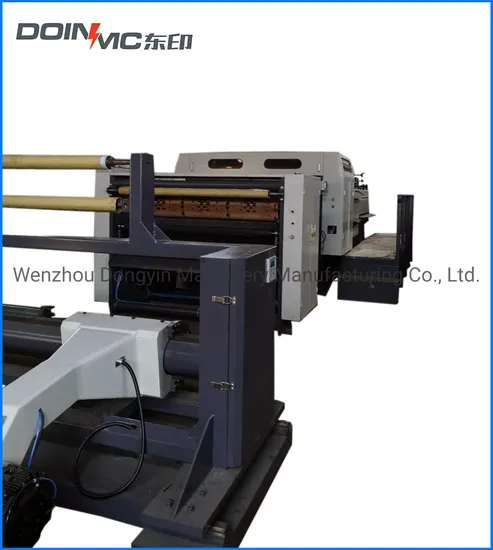

Paper Roll Sheeting Machine with Airhole Die Cutting Unit
Airhole kraft sheet cutting machine, it is desgined based on RS-D 1700 standard model, by increase a punching unit. Which could be inline and offline as client's request. It is widely used in the Latin American market. If you are fruit carton packing industry, please feel free to contact us.
Machine details:
Company Introduction:
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, we are growing out from Ruian City Dongfang Machinery Manufacture Co., Ltd.(since 1993) We take the good technical tradition from it, and develop more stronger soft packing material roll sheeting machine series. Absorbing more new advanced technology, we have brand upgrade of our old products both in pre-press and post-press industry.
We will keep our core value to offer grate service to each customers home and aboard. Offer qualify machine, make client getting rich. Good service, good faith. We DONGYIN people always stand by.
Machine Introduction:
RS-D series machine control system is composed by motion controller, PLC, touch screen etc. The automatic control system adopt the international first rate servo motor and driver, and all important units adopt famous imports with good quality. It can keep good stabilization along with high cutting speed. Adopt precision bearings and cutting blade. It has high cutting precision, and long service life. Gently touch screen man - machine interface. Good looking and easy to use. Adopt advisable reverse - bent rack to keep paper on the same level. Unwinding adopt hydraulic pressure loading -unloading system, shaftless stand, and automatic pression control system.
It is ahead of the similar processing machine in paper manufacturing and printing in China. It will raise your manufacturing efficiency by times, and increase your benefit as the same.

Model	RS-D1700
Web Width range	1700mm
Max. Unwinding Dia.	1600-1800mm
Thickness Range of Paper	60-550g
Cutting Method	The upper knife cut reciprocally and the lower knife is fixed
Max. Sheeting Speed	350 cuts/min (pre-press) 200 cuts/min (post-press)
Max. Feeding Speed350	m/min (pre-press) 200 m/min (post-press)
Sheeting Length Range	450-1450mm
Cutting Precision	The cutting length ≤1200mm: ±0.3mm; The cutting length >1200mm: ±0.1%; Post-press: ±0.5mm
Slitting Format	1/2 Sheets
Max Sheeting Pilling Height	1300mm
Machine Weight (kg)	13000
Total Power	36kW
Voltage	AC380V/220V 60HZ/50HZ
Air Supply	0.8Mpa
Overall Dimension (L*W*H)	12000*4800*1900(mm)

Standard configuration
1. Prismatic adjustment system for paper 1 SET
2. Paper conveying appliance 1 SET
3. Automatic paper trimming and piling system 1 SET
4. Electrical control system 1 SET
5. Motor driving system 1 SET
6. Accessory 1 SET
7. Face cone shaftless stand 2 SET
8. Paper tension control system 1 SET
9. Operation system: LCD man-machine interface 1 SET
10. Main drive system: AC servo motor 4 SETS
Optional:
a. Round Cutter Slitting System 3 SET.
b. Color Mark length-register sheeting system 1 SET
Industry Application: furits air hole breathing when packing into cartons.
After-sales service:
purchase new machine:
After the equipment dilivery to the customer's factory , we will arrange professional engineers to help customer to installation, commissioning, training.
Warranty: the company provide a one-year warranty.
(in the warranty period, we will provide free parts replacement and maintenance services. (not including engineer transportation and accommodation fee))
After-sales service process
Receive Customer's request
- provide necessary files For your country's visa
-get the visa
- engineers reach costomer's country
-Customers pick our engineers at airport
-Engineer provide maintenance service
- accomplish maintenance service
- customer sent engineers to the airport
- complete the service
Shipping
Customized model, please contact our sales by inquiry here directly.
We will reply by email or phone call as soon as possible.

---
