Basic Info.
Material Feature
Oil Resistant, Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Standard
ISO, Cema, DIN, JIS, etc
Steel Material
Q235B Ss400b Gr.65 E235b S235jr Q345
Conveyor Length
10m--10000m
Voltage
220V,380V or Customized
Certification
CE, ISO, SGS, Quality Management etc
Transport Package
Standard Export Packing
Production Capacity
1000ton/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 80.00cm
Package Gross Weight
50.000kg
Product Description

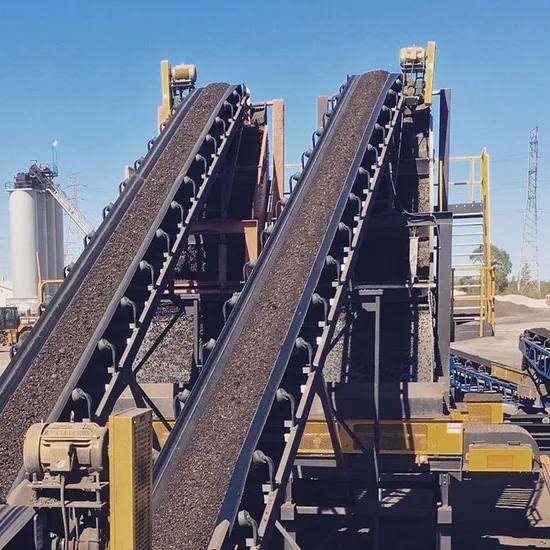

| Structural characteristics of belt conveyor: |
| 1. The belt conveyor can transport a wide variety of materials. |
| 2. There are various forms of structure, including trough belt conveyor, flat belt conveyor, climbing belt conveyor, roll belt conveyor, turning belt conveyor and other forms. |
| 3. The conveyor belt is made of various materials such as rubber, canvas, PVC, PU, etc. |
| 4.The conveyor belt is traction continuous transportation equipment,The applicable working environment temperature of belt conveyor is generally -25~40ºC. |
| 5. The conveying is stable, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed material. |
| 6.The noise is smaller, and it is suitable for occasions quiet environment. |
| 7. The belt conveyor has simple structure, easy maintenance, low energy consumption and low use cost. |
| 8. Specifications: The standard conveyor belt widths: 500, 650, 800, 1000, 1200, 1400mm, and the belt speed is 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4, 4.5, 5m/s10 Standard belt speed and 0.2, 0.3, 0.4m/s 3 kinds of non-standard belt speed. |
| Belt Conveyor Technical Specifications |
|
| Belt width(mm) | Belt speed (m/s) |
| 0.8 | 1.0 | 1.3 | 1.6 | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 6.5 |
| Capacity (m³/h) |
| 500 | 69 | 87 | 108 | 139 | 174 | 217 | | | | |
| 650 | 127 | 159 | 198 | 254 | 318 | 397 | | | | |
| 800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | | | |
| 1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | | |
| 1200 | | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2971 | |
| 1400 | | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 4130 | |
| 1600 | | | | | 2186 | 2733 | 3444 | 4373 | 5466 | |
| 1800 | | | | | 2795 | 3494 | 4403 | 5591 | 6989 | 9083 |
| 2000 | | | | | 3470 | 4338 | 5466 | 6941 | 8676 | 11277 |
| 2200 | | | | | | | 6843 | 8690 | 10863 | 14120 |
| 2400 | | | | | | | 8289 | 10526 | 13158 | 17104 |
| Remark: Capacity is calculated by material horizontal conveyoring ,20°Operating stacking Angle,35°roller groove Angle . |
The basic structure of belt conveyor:
The components of belt conveyor system:
Various common types of belt conveyors, common accessories for conveyors such as rollers, idlers, couplings, impact beds, and cleaners.All the components are made in house to ensure the high quality of the belt conveyor system.
The specification of our main products:
The professional performance: High-quality trough belt conveyor's applicable working environment temperature is generally -25 ~ +40 ºC. In case of special working environment, if conditions such as heat resistance, acid and alkali resistance,cold resistance, , anti-corrosion, explosion-proof, flame retardant and downhole work are required, other corresponding protective measures should be taken.High-quality trough belt conveyors can transport materials in bulk and bags, such as stone, sad, coal,concrete, cement,gravel, fertilizer, mineral orliestone, coke, sawdust, woodchips, bulk materials, grans, cornflakes, carbon black, etc.Our Workshop:
| MACHINE:We have advanced laser cutting machines, a complete set of intelligent sheet metal forming equipment, robot welding and other processing and testing equipment. |
| PAINTING: We use electrostatic spraying to ensure variety, model and quality of coatings, thinners and curing agents should meet the design requirements and the current relevant national standards. The steel surface should be free of welding slag, welding scars, dust, oil, water and burrs before painting. No mispainting or omission, and the coating should be free of peeling and rust. Inspection method: observation and inspection. Uniform brushing, consistent color, no wrinkles,sagging and bubbles, good adhesion, and the color separation line should be clear and neat. |
| DELIVERY:The goods and product factory certificate, installation and use instructions and drawings, a full set of connectors. After the equipment arrives at the site, the company immediately arranges professional and technical personnel to guide the installation on site to provide customers with satisfactory services. |
| PACKAGE:Packed with steel frame or wooden box, according to the standardfor trade export or according to the special requirements of customers. |
>>
