Basic Info.
Type
Single-Screw Extruder
Plastic Processed
General-Purpose Plastics
Product Type
Extrusion Molding Machine
Assembly Structure
Integral Type Extruder
Engagement System
Optional
Screw Channel Structure
Optional
Computerized
Computerized
Can Be Configured Into
Sheet,Wire,Pipe,Cast Film,Blow Film,Ect.
Control Mode
PLC & Touch Screen Control
Screw Diameter
19,20,25,30,35mm
Electrical Control System
Siemens PLC
Pressure Measuring Range
0~35.0MPa
Pressure Measuring Accuracy
0.2%F.S
Transport Package
Standard Export Wooden Packing
Specification
1120X1115X1660
Product Description

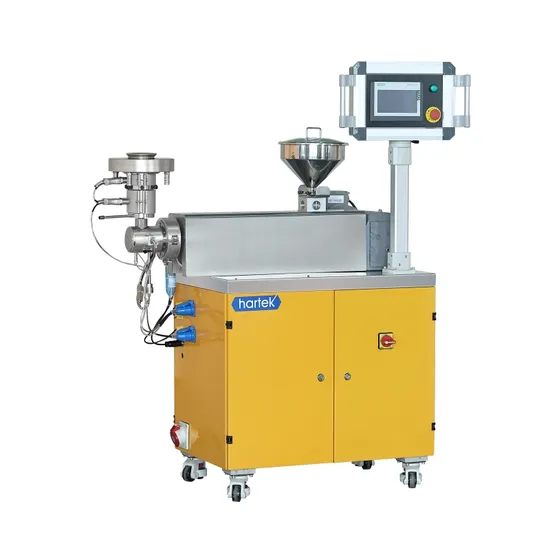

About Lab Single Screw Extruder:
*Applicable for the mixing of general-purpose plastics.
*Can be configured with downstream auxiliary machines to form 3D printing filament laboratory line, blow molding laboratory line, cast film laboratory line, pipe laboratory line, etc.
*Professionally manufactured screw and barrel with high processing precision, ensuring quality.
*Stainless steel hopper, allowing visual observation of material level through the transparent feeding base.
*Control panel with rocker arm design, making it convenient to view from various angles.
*Integrated lifting caster wheels for easy movement and positioning.
*Siemens TFT touchscreen and Siemens PLC centralized control system, highly intelligent and easy to operate.
* Mechanical and electrical dual safety protection meeting CE safety standards.
* Formula storage. Technical Parameters
| Model | HTES-20 | HTES-25 | HTES-30 | HTES-35 |
| Screw Diameter(mm) | 20mm | 25mm | 30mm | 35mm |
| L/D Ratio | 28:1(optional) | 28:1(optional) | 28:1(optional) | 30:1(optional) |
| Motor Power(kW) | 3kw | 4kw | 5.5kw | 7.5kw |
| Max. Speed(rpm) | 120rpm | 120rpm | 120rpm | 120rpm |
| Max. Temp.(ºC) | 350ºC(optional450ºC) | 350ºC(optional450ºC) | 350ºC(optional450ºC) | 350ºC(optional450ºC) |
| Temp. Accuracy(ºC) | ±1ºC | ±1ºC | ±1ºC | ±1ºC |
| Pressure Measuring Range(Mpa) | 0~35Mpa | 0~35Mpa | 0~35Mpa | 0~35Mpa |
| Pressure Measuring Accuracy | 0.2%F.S | 0.2%F.S | 0.2%F.S | 0.2%F.S |
| Output (kg/h) | 0.5~3kg/h | 0.5~5kg/h | 0.5~7kg/h | 0.5~10kg/h |
| Weight(kg) | 293kg | 325kg | 348kg | 370kg |
| Dimension | 1120×1115×1660mm | 1260×1115×1660mm | 1460×1115×1660mm | 1610×1215×1660mm |
FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
>>
