PCB Film Laminating Machine Dry Film

US$9,800.00-11,800.00 1 Set (MOQ)

Basic Info.

Model NO.
GH64R-Q
Classification
Cold Laminating Machine
Application
Aluminium Plate, Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Semi-Automatic
Membrane Material
Heat Transfer Film
Plastic Film Mulching Modes
Hot Laminating
Performance
Anti Ultraviolet Erosion
Weight
250kg
Power
AC220V
Maximum Machining Size
640*640mm
Minimum Machining Size
50*50mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L1110 * W750*H1750mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
500sets

Packaging & Delivery

Package Size
121.00cm * 85.00cm * 185.00cm
Package Gross Weight
300.000kg

Product Description


Product Description

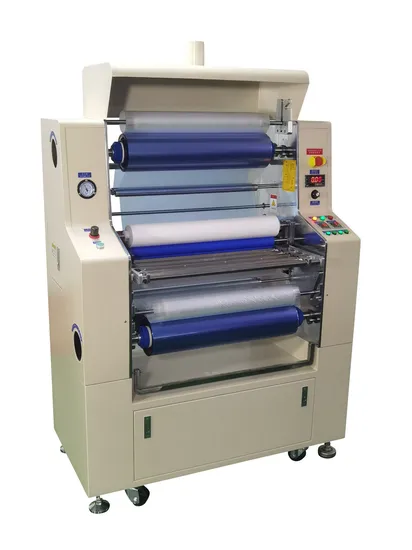

Manual Dry Film machine
model number GH64R-Q(With sticky dust function)
applied range The equipment is widely used in PCB, FPC, DBC, acrylic, glass and other plane product graphic transfer process pressure dry film use.
Features The film roller is made by a special process, with good thermal conductivity and uniform temperature. Adopting omron digital temperature controller, PID combined with SSR to control the temperature of two film rollers, ensuring that the temperature of the outer surface of the film rollers is stable during the film pressing process. The pressure film roller is made of silicone rubber, with moderate hardness, long service life, and easy replacement
current source AC 220V,single phase,6.5KW ,50HZ
Maximum machining size 640MMX640MM
Minimum machining size 50MMX50MM
Pressure roll diameter 80MM
Pressure roll quantity 2
Film thickness 0. 01-3.5mm
Pressure membrane speed Using a digital speed display, the speed range of 0~3.5m/min is adjustable
Pressure membrane temperature room temperature ~130ÂșC
Adhesive dust roll quantity 2
Cstick dust paper quantity 2
Temperature control system 2 Japanese OMRON temperature controllers, combined with SSR, The upper and lower rollers can be set for control, set automatic temperature control, with overtemperature protection function
pressure 0-8kg/cm2(adjustable)
External size L1110 * W750*H1750mm
Equipment weight 250 kg
