Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Maximum Torque/Speed
500/1500n.M
Bucket Digging Force
107kN
Specification
7795x2525x2880mm
Production Capacity
10000 Units/Year
Product Description
Product Description

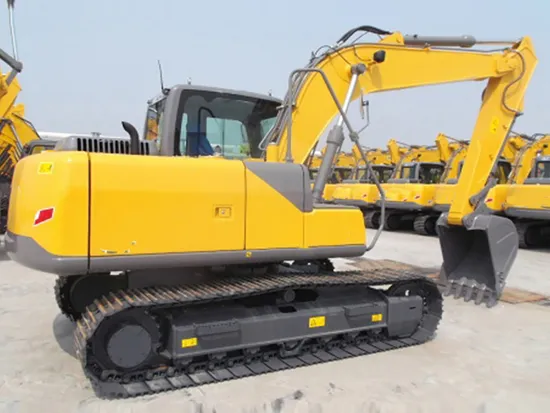

Popular Chinese Brand XE135U 15Ton Excavator with 0.55m3 Bucket
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the
maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket
ensure strong soil holding capacity. Detailed Photos
Product Parameters
| Description | Unit | Parameter value |
| Operating weight | kg | 13200 |
| Bucket capacity | m³ | 0.32~0.61 |
| Engine | Model | | |
| QSF3.8 |
| Style | Direct injection | --- | √ |
| Four strokes | --- | √ |
| Water cooling | --- | √ |
| Turbo-charging | --- | √ |
| Air to air intercooler | --- | √ |
| No. of cylinders | --- | 4 |
| Output power | kW/ r/min | 86/2200 |
| torque/speed | N.m | 470/1300 |
| Displacement | L | 3.76 |
| Main performance | Travel speed(H/L) | km/h | 5.2/2.9 |
| Gradeability | % | 70 |
| Rotary speed | r/min | 11 |
| Ground pressure | kPa | 42 |
| Bucket digging force | kN | 99.1 |
| Arm digging force | kN | 68 |
| Hydraulic system | Main pump | -- | T5V63DP |
| Rated flow of main pump | L/min | 2×125.4 |
| Main safety valve pressure | MPa | 31.4/34.3 |
| Pressure of pilot system | MPa | 3.9 |
| Oil Capacity | Fuel tank capacity | L | 260 |
| Hydraulic tank capacity | L | 105 |
| Engine oil capacity | L | 11 |
| Appearance size | Overall length | mm | 7795 |
| Overall width | mm | 2525 |
| Overall height | mm | 2880 |
| Width of platform | mm | 2490 |
| Length of crawler | mm | 3648 |
| Overall width of chassis | mm | 2490 |
| Width of crawler | mm | 500 |
| Wheel base of crawler | mm | 2918 |
| Crawler gauge | mm | 1990 |
| Clearance under counterweight | mm | 931 |
| Min. ground clearance | mm | 466 |
| Min. rear-end swing radius | mm | 2325 |
| Working scope | Max. digging height | mm | 8638 |
| Max. dumping height | mm | 6174 |
| Max. digging depth | mm | 5546 |
| Max. digging depth at the range of level 8 feet | mm | 5335 |
| Max. vertical wall digging depth | mm | 4698 |
| Max. digging reach | mm | 8304 |
| Min. swing radius | mm | 2445 |
| Worker | Standard | Length of boom | mm | 4600 |
| Length of arm | mm | 2520 |
| Bucket capacity | m³ | 0.52 |
| Optional | Length of boom | mm | |
| Length of arm | mm | 2100/3010 |
| Bucket capacity | m³ | 0.32/0.4/0.61 |
