CT PT Wall Bushing Insulator Epoxy Resin APG Clamping Machine

US$48,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BW
Type
Injection Blow Molding
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves
Clamp Plate Size
1000*1200mm
Clamp Force
24t
Min Max Clamp Plate Stroke
240*1250mm
Upper&Lower Core Puller Stroke
760*350mm
Heating Power
24kw
Hydraulic Power Pack
7.5kw
Horizontal Tilting Angle
0-7 Degree
Mould Load Weight
2t
Transport Package
Customized
Specification
Customized
Trademark
BANGWIN
Origin
China

Product Description

Product Description
1. Use:
The APG device is controlled by the human-machine interface, the template size can be customized, and can support two sets of molds produced together, greatly improve production efficiency, especially for products with simple structure, such as insulators, bushings, sensors, etc.
The APG equipment is controlled by PLC system, man-machine interface, template size can be customized, temperature, pressure can be set, flow rate, pressure holding time, automatic boot, automatic heating, automatic filling, multi-level administrator control, and can save products parameter, automatic cycle production, can save hundreds of product parameters, greatly convenient user production, improve product efficiency and product quality.
Application

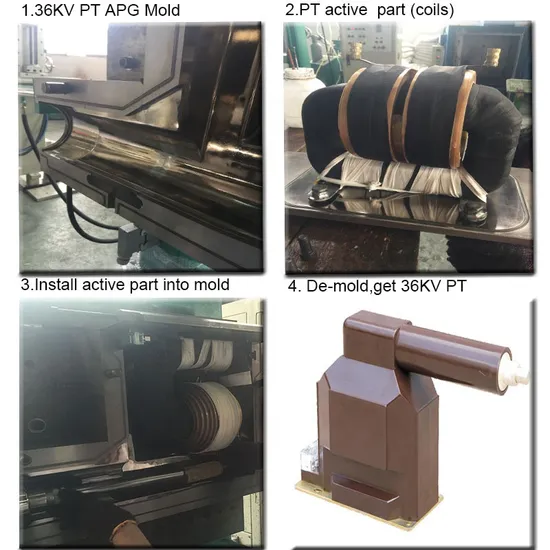

1. Pole mounted distribution transformer pressure gelation molding machine is applicable for electric resin epoxy products such as transformer, 12KV-1250A, contact box, 40.5KV bushing, bending plate, upper and lower shell of SF6 insulating cover,etc.
2. Pole mounted distribution transformer pressure gelation molding machine is large and medium-sized equipment, mould plate is 800*600mm, length of upper and lower core-pulling stroke can be determined according to the product
This machine is full automatic,Servo and PCL touch screen control. Machine, the clamp plate size can customized, greatly improved efficiency and product quality. Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
*Machine Technical Parameters
Clamp Plate Size 1000*1200mm
