Aggregate Hard Stone Crusher 38mm 790t/H Hpt500 Cone Crusher From China

Product Description

Product Description Aggregate Hard Stone Crusher 38mm 790t/h Hpt500 Cone Crusher From China

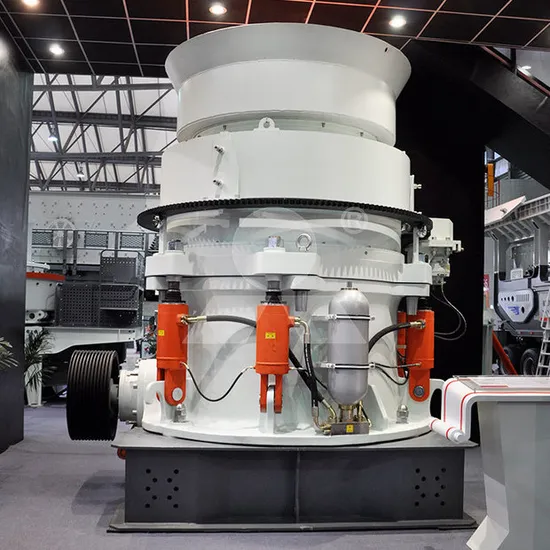

HPT500 CONE CRUSHERHot Sale Mining Stone Crusher Hydraulic Aggregate Cone CrusherCavity (coarse/fine): F1 FineClose Side feed opening(mm): 135Min CSS (mm): 16Capacity (t/h): 270-535Power (kW): 400HPT series high efficiency Hydraulic Cone Crusher is a world-level cone crusher developed from the up-to-minute technology of Germany. The cone crusher not only improves the production capacity and crushing efficiency, but also widen the applying area, from limestone to basalt, from stone production to various are crushing. It has a second-to-non crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the line of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.Features1. High crushing ratio and production efficiency.Connection of higher turning speed and stroke makes rated power and passing capacity improved greatly and crushing ratio and capacity increased.2. Less spare part consumption and low operation cost.advanced crushing principle and technical data, reliable operation and low operation cost. All parts of the crusher have anti-wearing protection, which can make the life time of spare parts increased by 30% and the maintenance cost decreased to the lowest. The crusher avoids the disadvantages of impact crusher like low average crushing ratio, large energy consumption, fast abrasion of blow bar, impact plate and lining board.3. Between-layer pressuring crushing and better finished product shape.The crusher adopts between-layer pressuring crushing principle and suitable turning speed, not the traditional single particle crushing principle. The special crushing cavity can make the crusher crush materials selectively, thus the proportion of fine product and product of cubic shape is increased distinctly and product of lump size is decreased by a large extent.4. Thin oil lubrication makes the life time increased.Unique design of thin oil lubrication system prolongs life time of the crusher, high performance and not touchable labyrinth airproof part block off dust and remove common disorders like mixture of oil and water in spring cone crusher.5. Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.Discharge opening is adjusted by hydraulic device and overload protection makes performance of the crusher increased by a large extent, maintenance and operation are easier, repairing time is shorter.; the bidirectional metal releasing hydraulic vat makes slab pass through crushing cavity;the crusher can discharges material automatically when the hydraulic device works under the condition of iron passing and instantaneous overloading, thus there is no trouble of stopping the crusher to discharge material by hand.6. Various crushing cavity.It only need change fixed cone lining board and movable cone lining board; , the type of crushing cavity can be changed from standard coarse cavity to short head fine cavity, which can meet various kinds of requirements.7. Easy maintenance and operation.all parts of HPT series of cone crusher can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. If change, no need to disassemble the crusher body and fasten the bolts. Hydraulic motor makes the performance of crusher better.8. The crusher can provide customers larger capacity, better product shape, and easy operation.

Model	Cavity Type	Feed port size (mm)	Minimum discharge opening (mm)	Processing capacity (t/h)	Maximum installed power (kW)
HPT100	C1()	140	19	75-140	90
	C2()	100	13	60-110
	M()	70	9	52-100
	F1()	50	9	50-95
	F2()	20	6	45-90
HPT200	C2()	185	19	145-250	160
	M()	125	16	135-235
	F1()	95	13	115-220
	F2()	75	10	90-190
HPT300	C1()	230	25	220-440	250
	C2()	210	19	190-380
	M()	150	16	175-320
	F1()	105	13	145-280
	F2()	80	10	110-240
HPT400	C1()	295	30	300-630	315
	C2()	251	25	285-560
	M()	196	20	250-490
	F1()	110	13	180-345
	F2()	90	10	135-320
HPT500	C1()	330	38	425-790	400
	C2()	290	30	370-700
	M()	210	22	330-605
	F1()	135	16	270-535
	F2() e	95	13	220-430
HPT800	C1()	350	38	570-1200	630
	C2()	299	32	520-1050
	M()	265	25	475-950
	F1()	220	16	370-800
	F2()	150	13	310-600

Product Parameters
