Ck6150 High Precision Flat Bed Horizontal CNC Lathe

Product Description

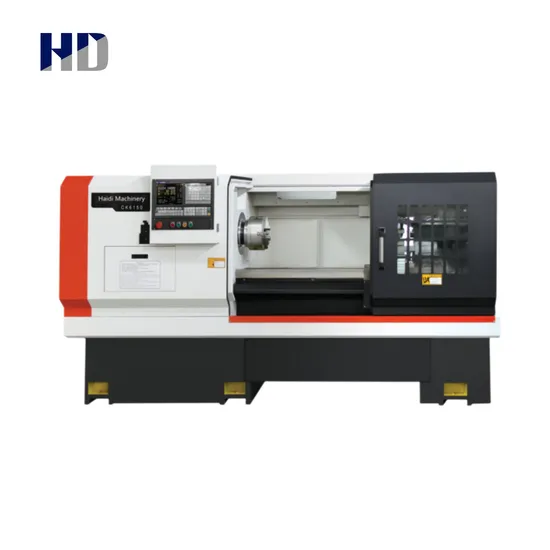

Product Picture
Specification Parameter

Specification	Unit	CK6140	CK6150	CK6160
Swing over bed	mm	400	500	600
Swing over cross slide	mm	240	250	395
Max. turning dia.( disc type)	mm	400	500	600
Max. workpiece length	mm	550/750	1000/ 1500/2000	1000/ 1500/2000
Max. turning length	mm	420/620 (chuck)	850/ 1350/ 1850	850/ 1350/ 1850
Spindle nose	/	A2-6/A2-8	A2-8/A2- 1 1	A2-8/A2- 1 1
Spindle bore diameter	mm	48/82	82/ 130	82/ 130
Taper of spindle hole	mm	Collet / Metric 90	Metric 90/ Metric 140	Metric 90/ Metric 140
Spindle speed range	r/min	150-2500/ 150- 1800	150- 1800/ 150-800	150- 1800/ 150-800
Spindle shift mode		Stepless	Stepless	Stepless
Spindle motor	kw	5.5	7.5	7.5
Chuck Type		Collet/ manual chuck	Manual chuck	Manual chuck
Z axis travel	mm	550/750	1000/ 1500/2000	1000/ 1500/2000
Guide way type	/	Hard rail	Hard rail	Hard rail
Capacity of turret	/	4	4	4
Tailstock sleeve dia.	mm	60	75	75
Quill traverse	mm	100	150	150
Quill taper	/	MT4	MT5	MT5
Machine dimension	mm	2000/2200*1600*1700	2650/3250/3750*1700*1820	2650/3250/3750*1700*1820
Net weight	kg	1900/2200	2700/3100/3300	2800/3200/3400

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.

Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.

Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.

Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.

Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
