Automatic CNC Router with Foam Blade for Tape Rubber Tissue Paper Rewinding Foam Plastic Fabric Corrugated Carton Box Cardboard Cutting Engraving Machine

Product Description

Multifunctional Automatic Profile Search Edge 1325 CNC Router with CCD Camera05
Product Description

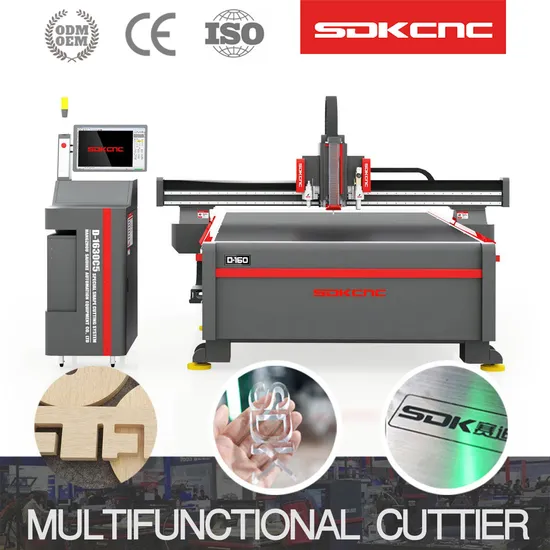

Δ D-160C5 is a high-speed edge patrol engraving & cutting machine developed and produced by SDKCNC,suitable for processing large quantities of plates.It adopts 6-10 axis CNC edge-control system,
Δ Its robust architecture,forged from Heavy duty steel structure (Stress Relief Treatment),undergoes a thorough time stress relief process. The whole machine adopts AC servo drive,Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail,silent screw rod.The D-160C5 adopts a weightless steel beam and comes standard with a 40,000 RPM water-cooled high speed spindle,which can be upgraded to 60,000 RPM.
Δ With standard configuration of hi-efficiency electric oscillating knife & trailing knife and the universal tool holder*2 .It can be equipped with pneumatic oscillating knives,crossing wheel tool,V-cut tool ,kiss cut tool and function of felt roller feeding .It can fastly finish steps of full cutting ,kiss cutting ,perforating ,creasing ,rounter milling ,contour recognition cutting and other processes.
Δ D-160C5 can engrave and cut wood, stone, PVC, acrylic, ABS, epoxy resin board, bakelite board and other materials at high speed, as well as leather, paper, textile fabrics.Standard CCD edge patrol component, Cutting without leaving white edges with one step.Suitable for advertising signs, industrial products, model display and other industries, especially suitable for small quantities of complex edges and shaped edges for sampling, to achieve a multi-purpose machine.
Detailed Photos
01 BED STRUCTURE
Heavy duty steel structur(Stress Relief Treatment)
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with high prescion helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
The whole machine adopts AC servo drive,Y-axis dual motor drive,
04 SPINDLE
High speed water-cooled spindle, 40000 RPM, can be upgraded to 60000 RPM
05 WORKING TABLE Phenolic resin clamping +felt table
with standard 5.5kw aluminum alloy vacuum pump
07 CCD SYSTEM
High resolution CCD camera element positioning, industrial edge cruising motion control system, can automatically correct the offset of the plate. And it can intelligently obtain the edge, one-click without white edge cutting.
08 UNIVERSAL TOOL HOLDER *2
The universal knife holder supports a wide range of knives, such as electric oscillating knife, pneumatic oscillating knife, offer-centered drag knife, kiss cut knife, creasing wheel knife, etc....
Product Parameters

Technical Parameter
Working Area	1600 x 2500 mm
Repeat position accuracy	±0.01 mm
Spindle Power	3.0Kw (1-40000 RPM)
Spindle Type	water-cooling
Spindle	Single-spindle
Control system	Industrial 6-10 Axis Edge Patrol Motion Control System (Depends On Type )
CCD	High Resolution CCD System
Drive motor	AC Servo Motor + Reducer
Type Name	D-130C1
Working Table	Felt + Phenolic resin suction clip intergrated table
Vacuum Pump	5.5KW
Transmission	2.5cm Linear Guide Rail & Grinding Level Helical Gear
Working Mode	hard materials engraving & Flexible Material Cutting
Lubricating system	Automatic oiling system
Universal tool holder	tool holder *2 (Standard electric vibrating knife & straight knife)
Support Tool Types	Support Tool Types Electric Oscillating Knife, Pneumatic Oscillating Knife, Offer-Centered Drag Knife, Kiss Cutter, Creasing Wheel Knife
Hard Material Carving	Wood, Stone, Acrylic, Pvc, Plastic Board, MDF,..
Flexible Material Cutting	Leather, Paper, Fabric, Self-Adhesive

Application Industry
Δ The universal knife holder supports a wide range of knives, such as electric oscillating knife, pneumatic oscillating knife, offer-centered drag knife, half-cutting knife, creasing wheel knife, etc....
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.it can also process various flexible rolls, such as leather, self-adhesive, paper, fabrics, etc. One machine for multiple purposes
Δ Normally apply to advertisement logo,sliding door ,packaging ,furniture,showcase,architectural models,metal signs .Suitable for processing various hard boards.CCD system as standard, especially suitable for processing and production of small batches of complex shapes and irregular edges.
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.

---
