Top Paper Preheater Cylinder, Core Paper Preheater Cylinder, Triple Preheater

Product Description

Top Paper Preheat Cylinder, Core Paper Preheat Cylinder, Triple Preheater Used In 2500mm Corrugated Paperboard Production Line

RG-1-1000	Top paper preheat cylinder	roller ¢1000mm,including pressure container certificate.Electric adjust wrap angle. Wrap angle can adjust the paper preheat area in the range of 360°.
RG-1-1000	Core paper preheat cylinder	roller ¢1000mm, including pressure container certificate.Electric adjustment wrap angle. Wrap angle can adjust the paper preheat area in the range of 360°.

RG-3-1000

Triple preheater

roller ¢1000mm,including pressure container certificate.Electric adjustment wrap angle. Wrap angle can adjust the paper preheat area in the range of 360°.

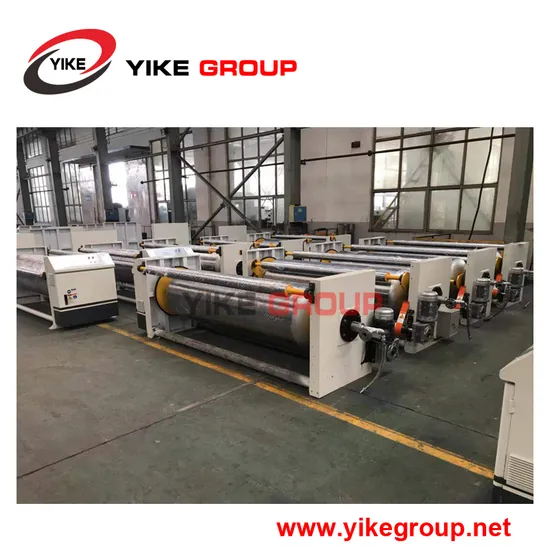

RG-1-1000 top(core)paper preheater RG-3-1000 triple preheater
Structural features:
1,preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.
2,Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
3,electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°
Technical parameters: 1,diameter of preheat roller:¢1000mm 2,angle shaft diameter:¢114mm×2 3,working power:380V 50Hz 4,motor power:250W short(S2)working system
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	Material
Steam rotation joint	Quanzhou yujie
preheater	Hangang or jigang	Q235Bpressure container board
bearing	HRB,ZWZ,LYC
Seat belt bearing	Zhejiang wuhuan
Reducer	Zhejiang fenghua
contacts	Scheider
Button	France Schneidr
Air switch	France Schnide
Angle axis		GB seamless steel pipe¢114
traps	beijing	Inverted bucket
