Long Range Public Protection Eo/IR Laser Radar System Anti Drone Denfence System

Product Description

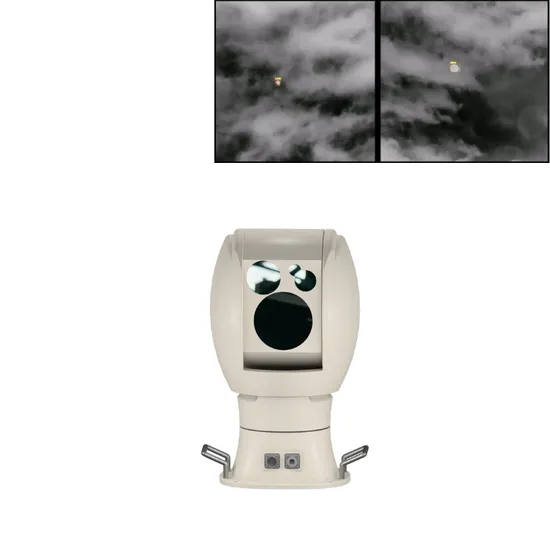

The unmanned aerial vehicle (UAV) optical detection radar system is designed for detecting "low, slow, small" targets such as drones, birds, and airborne objects. Using electro-optical detectors mounted on a precision turntable, it completes a 360° omnidirectional search and detection to discover targets, outputting information such as target identification and position. The system also performs automatic tracking and measurement of selected targets, providing precise location information. The system is equipped with a scanning-type long-wave non-cooled infrared thermal imager, visible light camera, laser rangefinder, and servo turntable. It can output panoramic infrared images, gaze-tracking visible light images, and provide information on target azimuth, elevation, and distance. The system is also equipped with an AI-based image processor, enabling target search and detection, tracking and recognition, and panoramic image display Product Feature 1. Multi-band fusion and intelligent detection
2. High measurement accuracy
3. Accurate target detection and recognition in complex backgrounds
4. Strong anti-interference and survival capabilities
Product Parameters

General Specifcations
Detect	Search and Detect Range	Height ≤ 1000m; Distance ≥ 2000m
	Detect Range DJI Phantom	IR≥2km EO≥5km Laser Rangefinder≥2km(optional)
	Detect Range airborne objects and birds	IR≥500m EO≥700m
Search	Search Range	Azimuth Angle: N × 360° Elevation Angle: -10° to +70° (0° = horizontal)
	Speed	≥ 3 s/rotation
	Measuring Accuracy	Azimuth: ≤ 0.5°;Elevation: ≤ 0.5°
	Search Target Detection Precision Accuracy	≤ ±1 pixel
	Multi-Target Detection Capability	≥ 30 targets
Recognition and Tracking	Tracking Measurement Accuracy	Azimuth: ≤ 0.05°;Elevation: ≤ 0.05°
	Tracking Precision	≤ ±1 pixel
	Anti-Jamming Tracking Time	≥ 3 s
	Recognition Probability	≥90%
Physical Characteristics	Weight	≤ 35kg(main unit)
	Size	Φ360mm×520mm
Environmental Adaptability	Operating Temperature	-20ºC~+55ºC
	Storage Temperature	-25ºC~+60ºC
	Protection Level	IP66
Interface	Power Interface	DC28V
	Electrical Interface	RS422,RS485,SDI
	Communication Interface	Gigabit Ethernet RJ45
Detector Specifications
IR Camera	Resolution	640×512
	Spectral Range	8~14μm
	Focal Length	60mm/100mm
	Tracking FOV	4×3.3°~7.3×5.9°
	Panoramic FOV	4×3.3°/7.3°×5.9°
Low Light EO Camera	Resolution	1920*1080
	Wavelength	400~1100nm
	Min Illumination	0.001 lux (F1.5)
	Focal Length	10 ~ 550mm;55× optical zoom, 16× digital zoom
	FOV	0.6°×0.3°~31°×17.8°
	Control	Motorized/ zoom
	Image Defog	Optical /Electric
Laser Rangefinder (option)	Wavelength	1540nm
	Max range	≥2km
	Accuracy	1m(RMS)
	Beam Divergence Angle	0.6 mrad
	Range Frequency	1 Hz ~ 5 Hz adjustable
	Eye Safety	Class 1
Turntable Information
Azimuth Angle		0~360°, unlimited rotation
Elevation Angle		-10°~+85°
Azimuth Speed		0.01°~180°/s
Elevation Speed		0.01°~100°/s
Angular Acceleration		≥60°/s²
Azimuth Speed Stability		<0.1%
Angle Measurement Accuracy		≤0.01°

Detailed Photos
Company Profile Founded in 2015, Xi 'an Zhongke Lead IR Technology Co., Ltd. is an intelligent photoelectric equipment development enterprise, incubated by Xiguang Institute of Chinese Academy of Sciences, with the thermal IR imaging technology at its thermal imaging module. It has long been a well-known supplier of IR imaging and measurement equipment at home, and also the advocate of China's medical IR industry. The company boasts a large number of technical personnel with expertise in various sectors, and a staff of over 150, of which researchers accounted for more than 50%, including 25 senior researchers and 7 talented personnel at provincial or municipal level.Lead IR owns a number of patents, covering thermal imaging module technologies such as high sensitivity IR imaging, high-precision IR thermal field measurement, 3D vision reconstruction, and intelligent IR medical detection. The products developed have been successfully supporting more than 50 well-known enterprises and institutions in various fields. The company and its subsidiaries have three hubs of photoelectric equipment integration, precision optical processing and special lens installation and calibration, equipped with more than 200 sets of advanced equipment of various types, such as CNC polishing, contour graph, three-coordinate equipment, interferometer, photoelectric test system, etc., with the ability to realize the whole process of photoelectric products from design, processing to integration and inspection.After years of exploration, the company has won many honors, including National Key Little Giant Enterprise, National High-Tech Enterprise, National Enterprise with Intellectual Property Strength, Hidden Champion Enterprise of Shaanxi Province, Thermal imaging module Member of Shaanxi Photonic Industry Innovation Consortium, Xi 'an Gazelle Enterprise, and Potential Unicorn Enterprise in Xi 'an High-tech Zone.
