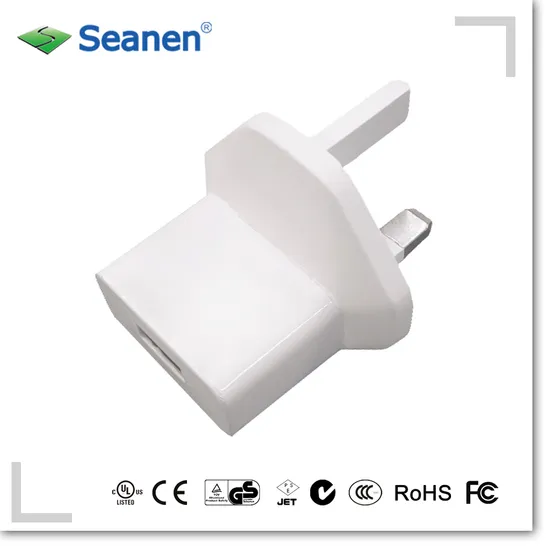

USB Travel Charger for Tablet, Phone, Mobile Devices

Product Description

5Watt travel charger
1) New design, Exquisite, Extra small size
2) Meet the highest efficiency level USA DOE VI and Europe COC V5 Tire 2.
3) USB inlet
4) Polished case
Specification
1) Input voltage: 90-264VAC
2) Input frequency: 50/60Hz
3) Input current: 0.18A max
4) Surge current: 50A max
5) Output voltage and current: 5VDC 1A Max
6) Efficiency: Meet DOE VI>73.62%; COC V5-2>73.77%.
7) Power consumption (no loading): <0.1W
8) Ripple: < 120mV
9) Compliant with RoHS, PAHs, REACH
10) Color: Black and white are available
Certificates and approvals
UL/cUL, GS, CE, UKCA, C-tick, CB, FCC, PSE
Protections
Short circuit protection
Over voltage protection
Over current protection
Envionmental requirements
Operating Temperature: 0-45°C
Operating Relative humidity: 10-90% RH
Storage Temperature: -20-70°C
Height above sea level: 0-5000m

SPECIFICATION
Input	Input voltage	90-264VAC
	Frequency range	47-63Hz
	Inrush current	50A Max, 240VAC at max load
	Leakage Current	0.25mA max
	Energy efficiency	DOE VI, COC V5 Tire 2
Output	Voltage	5VDC
	Current	1A Max
	Power	5W
	Load regulation	+/-5%
	Hold-up time	10ms minimun at 115V AC / full load
Connector	DC cable	2468 2C 6FT or others
	DC plug	Per customer request
Protections	Short circuit protection	Yes
	Over voltage protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0-45°C
	Storage Temperature	-20-70°C
	Operating Relative humidity	10-90% RH
Others	MTBF	50K hours at 25'C
	LED indicator	/
	Size	35.8*20.1*34mm (L*W*H)
Safety Approvals	UL/cUL/GS/CE/UKCA/CB/C-TICK/CCC/PSE/KO/EMC/FCC
Standards	UL60950-1, IEC/EN62368-1, AS/NZS60950-1, J62368, FCC part 15 class B
Compliance	RoHS, PAHs, REACH, WEEE

Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our standard products cover the full range items,
From 0.5W to 120W output power,
Safety approved including UL/cUL, TUV-GS, CE, UKCA, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
Compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
We can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
Seanen, your reliable power partner.

---
