698-4000MHz RF 3dB Hybrid Coupler Combiner for Radio Repeater System

Product Description

Product Description

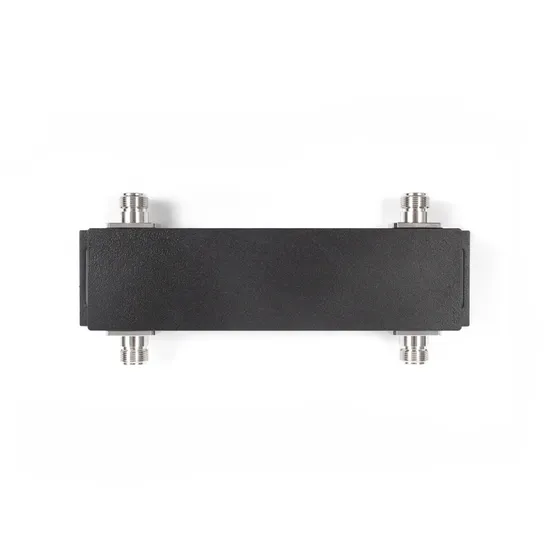

300W 3dB Hybrid Coupler(698-4000MHz, 4.3-10 Female, -160dBc, IP65)
A 3 dB hybrid coupler is a four-port device that is used either to equally split an input signal between output ports or to combine two signals while maintaining high isolation between the ports.
Topwave Model TPW-3HC-7400-160-41F, 3dB 698-4000MHz 4.3-10 Female wideband hybrid coupler with low PIM, low insertion loss and power handling up to 300 watts. The hybrid couplers provide the bandwidth, high directivity and high power that designers need for their most demanding applications. It is widely used for in-building DAS and IBS. Now available with type N, 7/16DIN and 4.3-10 connectors, all available in stocks with factory price.

Features & Benefits

·Guaranteed Parameters Compliance
·Wide Frequency Band Covering 698-4000MHz
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors

Electrical & Mechanical Specifications

Model No.	TPW-3HC-7400-160-41F
Coupling(dB)	3
Insertion Loss(dB)	≤1.0
Isolation	≥20
Freq(MHz)	698-4000MHz
VSWR	≤1.25
PIM Rating(dBc)	-160dBc@2x43dBm
Power Rating(W)	300W (average Per Port)
Impedance	50 ohm
Connector	4.3/10-female
Color	Black
Relative Humidity	5-95%
Operating Temperature(ºC)	-25°C to +75°C
Weight(kg)	0.65(approx)

Recommended Products

2W DC-3000MHz 0~10dB SMA 50ohm 617-803MHz RF Signal Module Double Unit Public Safety 138-960MHz
Rotary Variable Step Attenuator Duplexer Diplexer 4.3-10 Female for Radio Reapter 3dB Hybrid Coupler Combiner N Female

About us

Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.

Main Products

Application

Packing Details

Testing Equipment

FAQ

Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.

---
