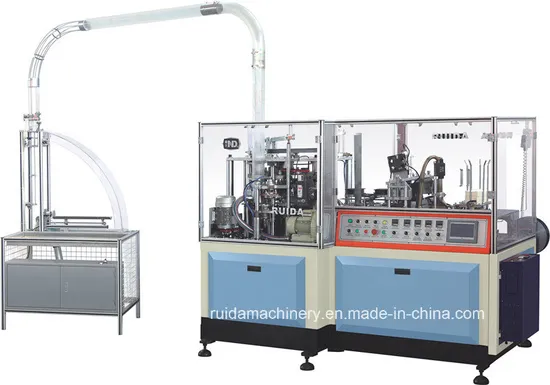

High Speed Paper Cup Forming Machine (RD-12/22-100A)

Product Description

RD-12/22-100A high speed paper cup machine comes with two turnplate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures.
The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Cup side sealing is done by Switzerland Leister heater to ensure side sealing stability, bottom sealing by Switzerland Leister hot air device.
Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance. The machine comes with PLC control system, sensorfailure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation saftety and reduceing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup stacker.
It is the best choice for making paper cups.
Technical data:

Model	RD-100
Cup size	6-16oz, 16-22oz
Paper material	180-380gsm
Speed	80-100pcs/min
Max. cup dimensions	Top diameter: 92mm Cup height: 170mm Bottom diameter: 65mm
Min. cup dimensions	Top diameter: 65mm Cup height: 60mm Bottom diameter:50mm
Power supply	380V or 220V, 50HZ, 3PH
Total power	10KW
Compressor air	0.4m3/min
Weight	3000kgs
Overall dimensions	2300 × 1200× 1800mm

---
