Closed-Loop Control Torque Synchronous Asynchronous Motion Fatigue Actuator Test /Test Parts

US$6,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

VLN

Max Diameter of Workpiece

<500mm

Mass Scope of Workpiece

<900kg

Maxcapacity

>1000KN

Accuracy Grade

0.5

Load Way

Mechanical Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

500-1000Kg

Power Source

AC380V

Oil Cylinder Position

Based on User Needs

Working Pressure

21MPa

Linear Servo Actuator Independent Workin

0.01Hz-100Hz

Oscillating Servo Actuator Independent W

0.01Hz-50Hz

Compound Working Frequency

0.01Hz-10Hz

Effective Torsion Angle

90°

Transport Package

Wooden Box

Specification

800**520*1850mm(Can be Customized)

Trademark

VFTest

Origin

China

HS Code

8412210090

Production Capacity

20pieces/Year

Product Description

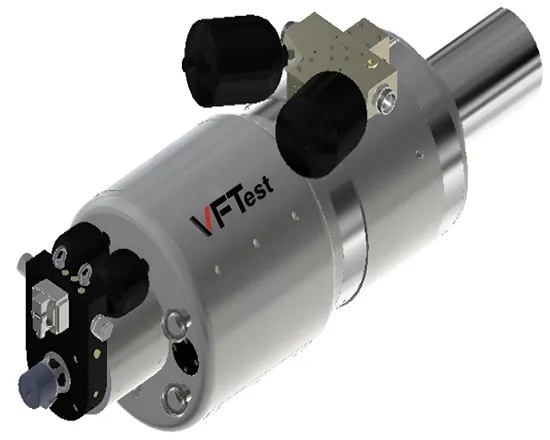

Tension and torsion combined static bearing servo actuator produced by our company is a device that outputs tensile force and torsional force in electro-hydraulic servo system, and is a key component of dynamic loading. It is mainly used in the field of dynamic, static and fatigue testing. The Tension and torsion combined static bearing servo actuator is mainly composed of the servo linear cylinder, the servo swing cylinder, the displacement sensor, the Angle sensor and the connection mechanism of the linear cylinder and the swing cylinder, etc., which can realize a variety of closed-loop control. Specification Working pressure: 21Mpa
Maximum static tensile force: 300kN
Maximum tensile and compressive dynamic force: 240kN
Piston rod diameter: Φ125mm
total tension stroke: 160mm
effective tension stroke: 150mm
Maximum torsional static force: 1000Nm
Maximum torsional dynamic force: 800Nm
Total torsion Angle: 100°
effective torsion Angle: 90°
Linear servo actuator independent working frequency: 0.01Hz-100Hz
Oscillating servo actuator independent working frequency: 0.01Hz-50Hz
Compound working frequency: 0.01Hz-10Hz
