High Temperature Oil 1HP Centrifugal Injection Chemic Circul Automatic Circulating Transfer Water Chemical Pump

Product Description

Product Descriptionhorizontal centrifugal chemical industry pump

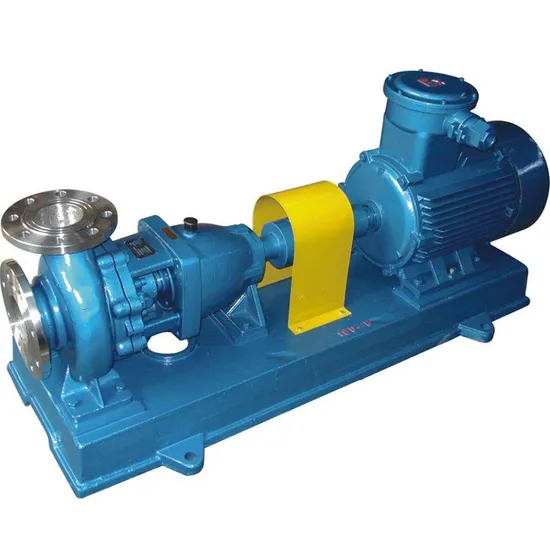

IH series chemical pump are horizontal single stage single suction (axial suction) corrosion resistant centrifugal pumps.
They are widely used in petroleum, chemical, metallurgical, power, papermaking, food, pharmaceutical, synthetic fiber and other sectors for transporting liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water.
The medium temperature of the IH series chemical pumps is -20 to 105 ºC.
IH series chemical pumps advantages are as follows:
1. Optional sealing forms: packing seal and mechanical seal.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 132.5m.
3. High flow rate capacity: can be reached 460m3/h.
4. High temperature resistance: Due to the special material of mechanical seals with high temperature resistance, users are now mostly used as hot water pumps, which are simple, convenient, and practical compared to hot water circulation pumps.
5. Diameter size:outlet size from 32mm to 150mm.
6. High corrosion material : stainless steel material and can be customized. PH value 1.0-14.
7. Widely application: both chemical wastewater and hot water can be transported, widely used in petroleum, chemical, metallurgical, power, papermaking, food, pharmaceutical, synthetic fiber and other sectors.
8. Driving engine of motor and diesel are available.
9. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV, HC.
10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.
IH series chemical pumps construction:
1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Shaft
9. Suspension components
Product ParametersThe following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.

Model	Motor Power(kw)	Clear Water Performance						Dia. of pump(mm)
		Capacity		Head(m)	Speed(r/min)	Efficiency (%)	NPSH (m)
		m³/h	L/S
								Inlet	Outlet
IH50	0.55-11	5.4-15	1.5-4.17	4-82	1450/2900	28.5-60	2-2.5	50	32
IH65	0.55-30	10.8-30	3-8.33	4-127	1450/2900	28-69	2-3	65	50/40
IH80	0.55-37	21.7-60	6.03-16.67	4-125	1450/2900	41-75	2.5-3.5	80	65/50
IH100	1.1-75	42.9-120	11.92-33.33	4-133	1450/2900	55-78	2-5	100	80/65
IH125	3-100	60-240	16.67-66.67	8-132.5	1450/2900	53-81	2.2-5.6	125	100
IH150	11-45	120-240	33.33-66.67	15-53	1450	62-81	2-3.5	150	125
IH200	22-90	240-460	66.67-127.78	15-55	1450	70-83	3-4.9	200	150

Performance Chart:
Applications Petroleum Electric power Metallurgy
Papermaking Chemical industry Pharmacy
Packaging & Shipping
Product packaging, boxing, nailing, loading, arrival at the port, transportation.
Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!
Company Profile YONGSHUN Pump
Factory History: Established in 2016
Business Type: Manufacturer and exporter
Main Products: Slurry pumps, clean water pumps, sewage pumps, chemical pumps, multistage pumps, double suction pumps (split case pumps), booster pumps (pipeline pumps or inline pumps), self priming pumps, double stage filter press feed pumps, diesel water pumps and so on.
Certifications

2006/42/ECCertificate No:M.2023.206.C82652

ISO9001Certificate No:626018Q12046R6S

Credit level certificateCertificate No: ZXXY-ZXDJ20158

FAQQ: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have?
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.

---
