Affordable 8 Cavity Automatic Pet Plastic Bottle Blowing Machine

Product Description

Products Description

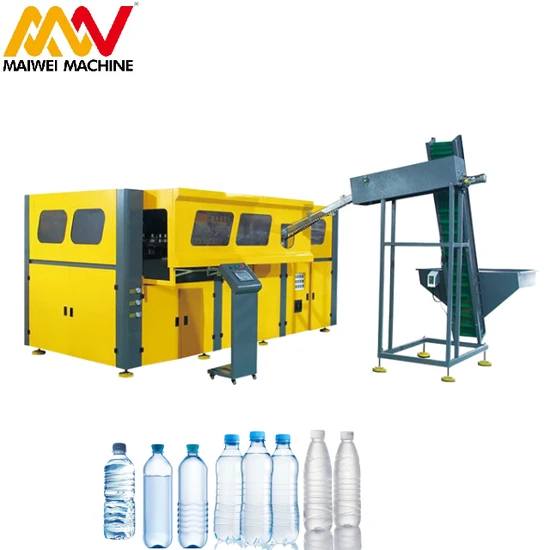

Automatic Bottle Blow Making Machine The fully automatic high-speed blow molding machine can efficiently and quickly blow bottles from 20ml to 2 liters, it has a complex design and well-designed machinery to achieve a gradual and stable blowing process. Uniform heating, layered preform heating system, automatic fault detection and alarm detection, can realize efficient control and stable production.

Features * Blowing Machine enables the production of various sizes of bottles with an improved design and vibration-free operation.
* The hydraulic mold system adds to the stability and elaborate design of the machine. It also provides flawless clamping and sturdy operation.
* The machine maintains a sound air control system that allows uniform airflow throughout the operation.
* For the most convenient and accurate shaping, a cooling device works by attaching to the bottleneck. It cools down the specific part after molding.
* The efficient servo motors allow convenient stretching of preforms. It will enable accurate and fast stretching strokes.

Product Paramenters

Model		Unit	MW-F6-650	MW-F6-2000	MW-F8
Clamping System	Number of cabity	cavities	6	6	8
	Clamping unit	KG	56000	65000	96000
	Mold stroke	mm	90	125	90
	Stretching stroke	mm	260	330	260
	Bottom stroke	mm	50	50	50
	Cavity pitch	mm	76.2	114.3	76.2
	Number of holder	PCS	106	106	152
Container	Max.container volume	ml	650	2000	650
	Max.container height	mm	260	330	260
	Max.container diameter	mm	68	105	68
	Max.prefrom height	mm	100	140	100
	Max.neck diameter	mm	38	38	38
Theoretical		B/H	7200	6000	9600
Electrical System	Heating oven qty	PCS	4×4	8×8	8×8
	Number of lamp	PCS	4×8	8×9	8×8
	Heating power	KW	64	96	96
	Installed power	KW	69.5	100	100
	Voltage	Voltage	380V/50HZ	380V/50HZ	380V/50HZ
Air System	Operating pressure	mpa	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing pressure	mpa	2.5-3.0	2.5-3.0	2.5-3.0
	High pressure air consumption	L/min	5.0/30	5.0/30	7.2/30
	Power	KW	60	60	75
Chiller System	Temperature		9-13	9-13	9-13
	Pressure	mpa	0.4	0.4	0.6
	Power	HP	5	5	8
Machine	Machine dimension	M	4.0×2.1×2.2	5.8×2.1×2.2	6.0×2.1×2.2
	Machine weight	KG	6000	7000	7500

Any more questions, pls feel free to contact me !
Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products. We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
