| Negotiable |
200 Pieces
(MOQ)
|
Basic Info.
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Vacuum
Poles Number
1,2,3,4,1p+N,3p+N
Function
Circuit-Breaker Failure Protection
Transport Package
Normal Package
Production Capacity
500000PCS/Year
Product Description
Product Description Construction and Feature

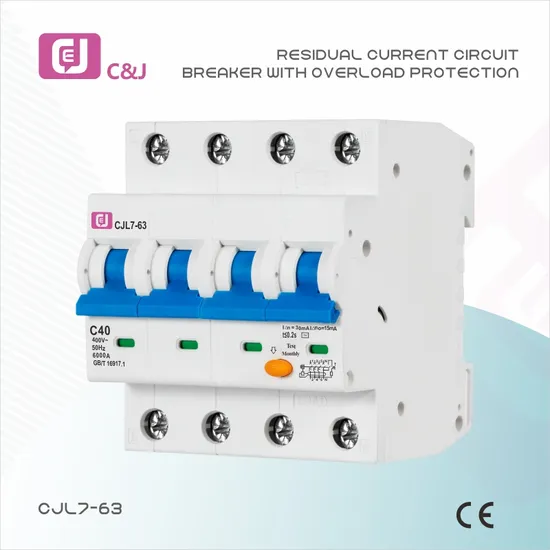

Residual Current Circuit Breaker With Overload Protection CJL7-63
1.Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
2.Contact position indication
3.Provides protection against indirect contact by human body
4.Provides complementary protection against direct contact by human body.
5.Effectively protects electric equipment against insulating failure
6.Equipped with switched neutral and phase pole
7.Provides protection against over-voltage
8.Provides comprehensive protection to household and commercial distribution systems.
It complies with standard of IEC61009-1,EN61009-1
Product Parameters Technical Data
| Standards | IEC61009-1/EN61009-1 |
| Type | Electronic type |
| Residual current characteristics | AC,A |
| Pole No | 2P,4P |
| Tripping curve | B, C, D |
| Rated short-circuit capacity | 6kA |
| Rated current (A) | 6A,10A,16A,20A,25A,32A,40A,50A,63A |
| Rated voltage | 240V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current(mA) | 0.03, 0.1, 0.3 |
| Tripping duration | instantaneous≤0.1s |
| Electro-mechanical endurance | 4000 cycles |
| Connection terminal | pillar terminal with clamp |
| Terminal Connection Height | H1=16mm H2=21mm |
| Over-voltage tripping | 280V±5% |
| Connection capacity | Flexible conductor 35mm² |
| Rigid conductor 15mm² |
| Installation | On symmetrical DIN rail 35.5mm |
| Panel mounting |
