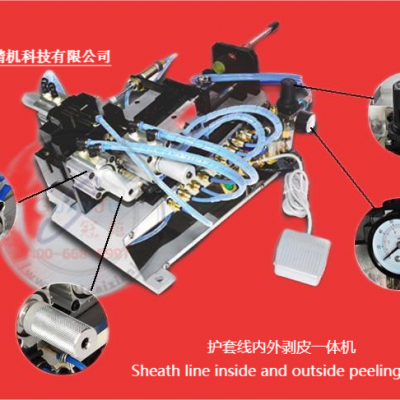

Sheath line inside and outside peeling machine

Product Details

Product Description

Product Description
The internal and external peeling machine can peel a lot of core inside and outside the skin at one time, and the phenomenon of copper wire damage caused by the overlap of the core wire will not occur when the core wire is peeled, which solves the problem that the internal and external skin should be peeled for a short time during the production of wire materials such as apple data wire. Sheath line inside and outside peeling machine can help you reduce costs, reduce labor, improve efficiency, improve product competitiveness.
The internal and external barker strips the outer skin and core skin of the sheath line at one time, changing the traditional processing number 500.JPG
According to the wire, power cord, sheath wire, cable, and other sheath wire first peel the outer skin, and then peel the core wire
The processing process of leather reduces one processing step, saves one labor, and reduces
The number of equipment used reduces the area of equipment. And internal and external peeling machine once peeled
The inner and outer skin of multi-core wire can be peeled in the case of shorter outer skin without stripping the core
The phenomenon of copper wire injury caused by core wire overlap solves the production of wire such as Apple data wire
It is difficult to solve the problem that the outer skin is peeled for a short time in the process.
Sheath line inside and outside peeling machine can help you reduce costs, reduce labor, improve
Efficiency, enhance the competitiveness of products.
Product Parameter：
Machine type：LJ-500
Apparent dimension：220x360x220mm
weight：28kgs(NET)
Electric source：AC110V/220V 50/60HZ
Power consumption：MIN.20W~MAX.220W
Cut-off length：0.1 to 99999 mm
Stripping length：0.1~999mm(depending on the wire

---
