Automatic Drinking Water Plastic Pet Bottle Shrink Sleeve Labeling Machine

Product Description

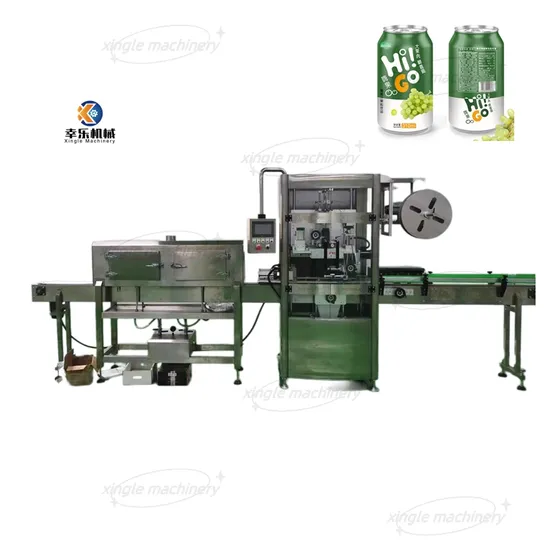

Product Description XL-200P fully automatic sleeve labeling machine
This equipment is a fully automatic intelligent packaging line that integrates the functions of feeding bottles, dividing bottles, setting labels, and shrinking labels. Real high speed, precise positioning, streamlining of manpower, and perfect packaging are the spirit of the design of this equipment. It is suitable for The outer packaging of beverages, condiments, cosmetics and other related products has the functions of being beautiful, easy to clean and maintain.
Drive part:
Due to the synchronous mechanism transmission, any transmission belt replacement can be completed quickly. Compared with the traditional multi-layer linkage type (which takes more than six hours to replace and repair), it is easier to maintain and will not affect production.
Cutterhead set:
The new cutter design is driven by a servo motor, with high speed, stable and accurate movement, smooth incision, and beautiful shrinkage. With the label synchronous positioning mechanism, the incision positioning accuracy is as high as 1mm. The unique cutter seat design in the country is suitable for 30mm ~ 130mm containers. The cutter seat is completely free of replacement and debugging. The cutterhead origin sensor is built into the cutterhead. There is no need to calibrate the timing belt position when disassembling the cutterhead. The exclusive use of light touch machine, which automatically searches for origin positioning, is safe and convenient, and is ahead of similar products. The new cutter design is driven by a stepper motor, with high speed, stable and accurate movement, smooth incision, and beautiful shrinkage. With the label synchronous positioning mechanism, the incision positioning accuracy is as high as 1mm.
Feeding group:
It adopts a single shrinkable material tray and an enlarged cache material rack design with a moderate height, making it easy to install labels; it uses a frequency converter and photoelectric sensor combined with a mechanical buffer device to control the label tension, making the label transportation stable and smooth. When there is no film material, the machine automatically stops and starts Warning lights and touch screen display in Chinese. The unique high-standard detection allows the equipment to detect label errors in time during the labeling process, preventing substandard products from flowing into downstream processes.
Flush the group:
A motor is used in conjunction with a double-sided arc timing belt to synchronize the rubber wheels under the brush to ensure the stability of the subscript.
With bottle set:
Mechanical transmission is used to drive the bottle positioning belts on both sides. When the specifications of the entire group of bottles are changed, the lifting and width of the bottle group are adjusted synchronously with a handwheel to achieve fast and convenient adjustment.
Machine lifting group:Using electric lifting, the operation is more convenient. Product Parameters

model	XL-200p
production capacity	≥12000BPH(elevation ≤ 60 mm)
Sleeve standard pass rate	≥99.9%
Whole line production efficiency	≥95%(Calculated based on 24 hours)
bottle diameter	28mm ~125mm,Special sizes can be designed separately
bottle height	30 mm -280 mm,Special heights can be designed separately
Bottle verticality	≤1. 0°
Applicable tags	PVC,PET,OPS
Label length	30mm ~250mm
Label thickness	0.027mm ~0.13mm
label material	PVC,PET,OPS
Label transparent spacing	≥5mm
Inner diameter of label paper core	≥4"(101.6mm)
Label outer diameter	≤500mm
Voltage	220V
Sleeve labeling machine power	3KW
Host dimensions	2000X1000X2000(length×width×height)
Total Weight	500 kg
Remark:Customized machine do not accept returns due to their special nature.
