Bcmc Hualong 5 Axis CNC Bridge Saw Stone Cutting Machine Quartz Granite Marble Bridge Cutting Machine Stone CNC Cutter

Product Description

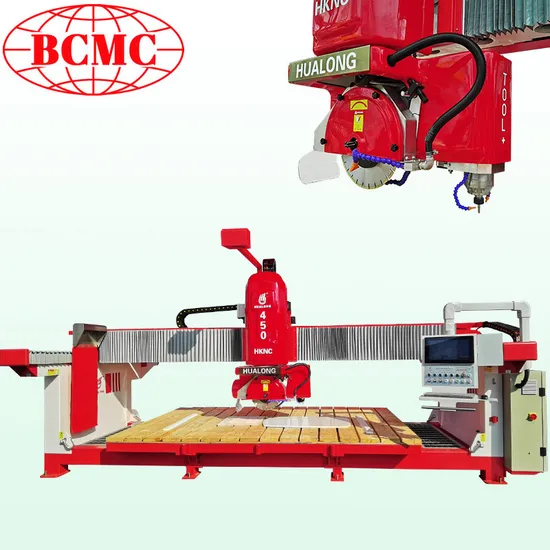

CNC Stone Machine HKNC-450plus+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
HKNC-450plus CNC 5 axis marble granite bridge cutting machines have a monoblock body and a rigid structure. In this way, vibration-free and high-speed straight cutting, circular cutting, cross (step) cutting, kitchentop cutting, sink milling features.
Functions: * make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting * machine with the Core Tool such as drill, end mill & excavation wheel * Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-450plus can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features:
1) 5 axis lnterpolation control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
6) Manual cuts available for simple machining.


7) Optional - Sole engraving module with electric spindle excellent for 2D carving.
8) Optional - Vacuum manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system

Paremeters:

TECHNICAL DATA FOR HKNC-450plus
Diameter of saw blade	ø400-ø450	mm
Dimension of working platform	3300x2000	mm
Max. cutting length	3300	mm
Max. cutting thickness	95	mm
Max. lifting stroke	250	mm
Max. lifting weight by sunction cups	200	kg
Power of main motor	15	kw
Power of cutter frame reciproctating motor	2	kw
Power of crossbeam shifting motor	1.1	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	0.85	kw
Gross power	22	kw
Water consumption	2	m3/h
Gross weight	4000	kg
Dimensions (L x W x H)	5900x3380x2950	mm

Detailed Information For Spare Parts:
Sole Engraving Module (Optional)
Type: electric spindlePower: 5.5 kw Rotating speed: 0-24000 rpm
Comparing with maniacal spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,or makes curve cutting, corner cutting by milling much faster too.
Control system -- CNC
Brand: Esa Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job easy, perfect and high efficient.
Digital Servomotor
Brand: ESAOriginal: Italy A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa's CNCs, creates a reliable controlling power for X, Y, Z, and C axises
Slab Image Capture(Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to be machined; it is also possible to qualify the slab edge geometrically.
Software - Pegasus CAD/CAM
Brand: PegasusOriginal: Italy * Easy to Use -- Very user-friendly, it does not require any advanced computer skill. * Reliable -- Frequent updates and high-quality support. * Powerful -- Different modules and tools for plenty of technologies and machinings.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Slab Thickness Detector (optional)
Origin: China System to automatically detect the thickness of the slab.
Vein Matching Function(Optional)
Easily match up each vein and seam of your project
Linear Guide:
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.


Final Products:

Application:

* 3D decorative wall panels
* Countertops
* Cut curves and contours
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
