US$8,000.00-30,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
Progressive Tool
Material
High Carbon High Chromium Tool Steel
Processing Method
Forming Mould
Process Combination
Progressive Die
Manufacturing Technology
Computer Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
Quality Problems, Free Replacement
Fin Hole Diameter Range
5-25.4mm
Fin Die Rows Range
4-72rows
Thickness Range of Material(Aluminium)
0.07-0.3mm
Collar Height Range
1.2-12mm
Type of Evaporative Oil
Af-2A, RF-530, Henkel Magnus L67, etc
Special Stages Under Customers Requirem
Louver, Surface Slit, Notching, Heater Holes, Wave
Using Field
Punching Fins for Heat Exchanger Air Conditioner
Transport Package
Steel Box
Specification
Fin Hole Diameter From 5mm to 21.5 Mm Is Available
Production Capacity
200sets / Month
Product Description
Product Description
| Fin Die |
1.Fin Die Features:
The Fin Die is an independent sub-unit from the the large mold base, where the blade-edge unit has an independent guide column and guide sleeve.
Each processing step as follow:
1.1) Drawing unit: According to the calculated data, a certain height and diameter convex hull is pre-drawn on the strip material. Among them, each channel has an independent adjustment device, and a position display indicator can record the corresponding number of adjustment heights of the channel punch for later convenient adjustment.
1.2) Louver forming unit:Flush the louver-type crack on the strip material as required by the fin scheme. The unit has an independent guide column and guide sleeve to ensure reasonable clearance between the upper and lower molds.
1.3) Punching flanging unit: flipping out the straight edge and the electro-thermal hole on the strip material with punched convex hull. The unit has an independent guide column and guide sleeve to ensure reasonable clearance between the upper and lower molds.
1.4) Double Flanging unit: On a flanging cylinder, turn the straw hat outward. There is an independent adjustment device, and a position display indicator can record the corresponding number of adjustment heights of the flanging of the track.
1.5) Slitting unit: Use three screws to adjust the position of the upper knife to determine the number of rows of the slits.
The unit has an independent guide column and guide sleeve to ensure reasonable clearance between the upper and lower molds.
1.6) Embossing unit: Pressing the fin edge pattern. Adjust the knife position with three screws to determine the number of rows of embossing.
1.7) Feeding unit: There is a small claw raised into the fin mouth to pull the strip forward one step.
1.8) Leveling unit:
1.9) Cutting unit: Cuts the strip material in accordance with the preset number of holes.
The above units are assembled in a large formwork to ensure the relative position of each unit.
2.Fin Die Material: | Item | Name | Material | HRC | Made in |
| 1 | Extension lower die bushing | ASSAB88 | HRC56~60 | Sweden |
| 2 | Extension upper punch | ASSAB88 | HRC58~62 | Sweden |
| 3 | All blades units | SKD11 | HRC62~64 | Japan/USA |
| 4 | Mold base | P20 | | CHINA |
| 5 | SGP | MISUMI/PANCH | | Japan |
| 6 | Spring | MISUMI | | Japan |
3.Life of Fin Die: 10 years in normal use, not include the wearing parts.
|

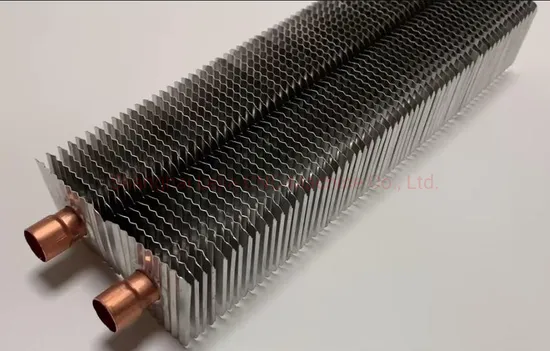

4. Fin Samples:
|
Detailed Photos
| Fin Press Machine Line |
C Frame:
fins press line for the punching of air conditioner fins is specially intended for meeting the requirements for the production of air conditioner fins.
The line mainly consists of uncoiler, oil tank, fin press, suction unit, stacker and relevant electrical control system;
Imported PLC, counter and contact point free cam controller are adopted to meet the requirements of counting the fins cut collected
as well as the function of progress change;
Production lines of special specifications can be made subject to the user's requirements. |
H Frame:
Compositions: Uncoiler, Oil tank, Air Feeder, Fin press, suction unit and stacker, Electric control system, Air system, Hydraulic system;
The slide of press has hydro-lifting function which will be convinent for dies installation/commissioning;
Press speed & vacuum stucker is controled by converter;
Collector has protecting system for fault operation No material warning, No oilwarning;
Hydraulic overload protection for main machine;
Equipped with hydraulic rapid-dies changing device, making dies change more quickly and convenient;
Machine-human interface and PLC electrical control system ensuring the reliable operation of the automatic punching. |
|
Processing and Manufacturing
LEJIA Customers
We Lejia export our products to different countries all over the world.(Germany, Sweden, Hungary, Italy, Netherlands, Spain, Portugal, Czech Republic, Lithuania, Serbia, Greece, Malta, Austria, Kosovo, Turkey, Ukraine, Albania, Estonia, Belarus, Bulgaria, Bosnia, Croatia, Romania,USA, Japan,Brazil, Argentina, Mexico, Bolivia, Colombia, Canada, Peru, Chile, Australia, New Zealand, Rwanda, Egypt, South Africa, Tanzania, Nigeria, Botswana, Mauritius, Russia, Vietnam, India, Iran, Singapore, Uzbekistan, Thailand, Sri Lanka, Bangladesh, Malaysia, Kazakhstan, Philippines, Bahrain, Pakistan, United Arab Emirates, Kuwait, Saudi Arabia, Sudan, Jordan, Oman, Qatar, Israel, Yemen,Mongolia,Burma..)
>>
