Factory Sale 16mm2 25mm2 70mm2 Flexible Rubber Welding Cable

US$0.35-3.50 500 Meters (MOQ)

Basic Info.

Model NO.

25mm2

Application

Underground

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

Rubber

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CE, CCC

Brand

Jinshui

Transport Package

Drum

Specification

1.1*1.1

Trademark

JINSHUI

Origin

Zhengzhou Henan

HS Code

4107961636

Production Capacity

50000km/Month

Product Description

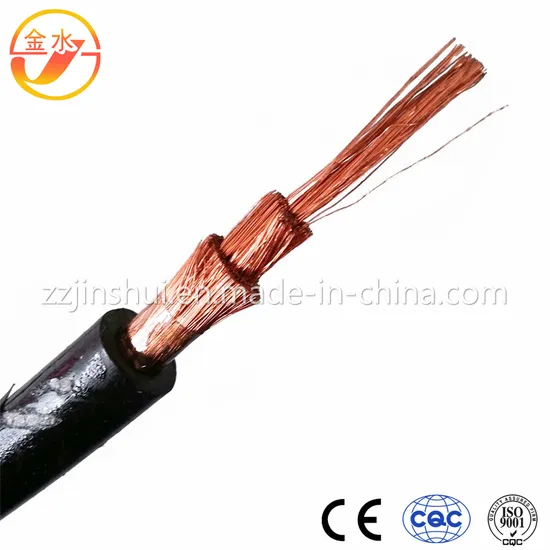

Welding Cable Rubber Welding Cable
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature

Model	Name	Main applications	Working temperature of core ≤0C
60245-81(YH)	Natural Rubber Sheath for Welding Cable	Always used indoor	65
60245-82(YHF)	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
60245-82(YHF)	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

3th. Standards: IEC60245
4th. Specifications, Size, Technical Data

Conductor Nominal Section (mm2)	Conductive Core	Average Outer Diameter (mm)		200C Conductor Resistance≤(Ω/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Min	Max	200C Conductor Resistance≤(Ω/km)
16	513/0.20	9.2	11.5	1.16
25	798/0.20	10.5	13.0	0.758
35	1121/0.20	11.5	14.5	0.536
50	1596/0.20	13.5	17.0	0.379
70	2214/0.20	15.0	19.5	0.268
95	2997/0.20	17.0	22.0	0.198
