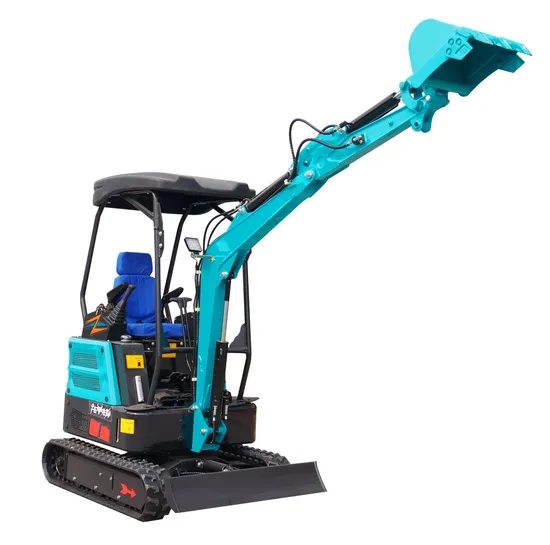

1.85 Ton Good Perform Used Hydraulic Crawler Excavator for Construction Machinery

Product Description

Product Description
A new upgraded mini digger excavator with better heat radiation and higher efficiency.
CAT mini excavator design model with Japan engine optional Strong power easy operation model for leasing purpose
Excavator safety features A Great Sustainable Decision for Your Operations and Your Business For Demanding Digging and Lifting WS-20CAT compact excavator offers impressive digging and lifting capabilities ideal for working on congested construction sites.
The reduced tail swing design extends just a few inches beyond the width of the excavator's tracks, minimizing the chances of hitting objects or buildings when rotating the machine.
The increased counterweight enables offset digging without the need to reposition. The width-protected swing frame lets you get closer to your work when operating against a structure or obstacle.
Other features include a backfill blade, a rubber track undercarriage, and a steel track undercarriage option.
Take on More Jobs With One Machine A variety of standard features enable immediate multi-attachment functionality and quick attachment changes.
No additional accessories are needed to install a compatible quick coupler - which significantly reduces the time it takes to switch attachments including augers, hydraulic breakers, and grapples.
Auxiliary hydraulic lines offer quick hose connections to hydraulic attachments. Adjustable flow rates help optimize the response of hydraulic attachments.

Detailed Photos
Product Parameters

NO.	Specification	Unit	WS-20CAT
1	Operating Weight	kg	1850
2	Bucket Capacity	m³	0.04
3	Bucket Width	mm	500
4	Travel Speed	Km/h	1.8-3.7km/h
5	Engine brand	/	Laidong/Kubota D1105
6	Rated Power	kW	18.8/18.2
7	Cylinders Quantity	/	3
8	Cooling type	/	Water Cooling
9	Fuel consumption	L/h	1.4
10	Pump Type	/	Plunger Pump
11	Control Valve	/	LS
12	Travelling Control	/	hydraulic pilot
13	Overall Length	mm	3550
14	Overall Width	mm	1440
15	Overall Height	mm	2203
16	Counterweight ground clerance	mm	400
17	Track length on Ground	mm	1500
18	Track shoe width	mm	240
19	wheel Gauge	mm	920
20	Track Extension Range (additional function)	mm	1100-1400
21	Swing Angle(L&R)	°	60
22	Min.Front Swing radius	mm	1645
23	Max.Diging radius	mm	3800
24	Max.Digging Depth	mm	2350
25	Max.Digging Height	mm	3200
26	Max.Dumping Height	mm	2290

Various models of mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08
Hot Product
DT350 DT260 DT230

DT65 DT160 DT180
DW80 DW88 DW150
Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales. Packaging & Shipping
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.

---
