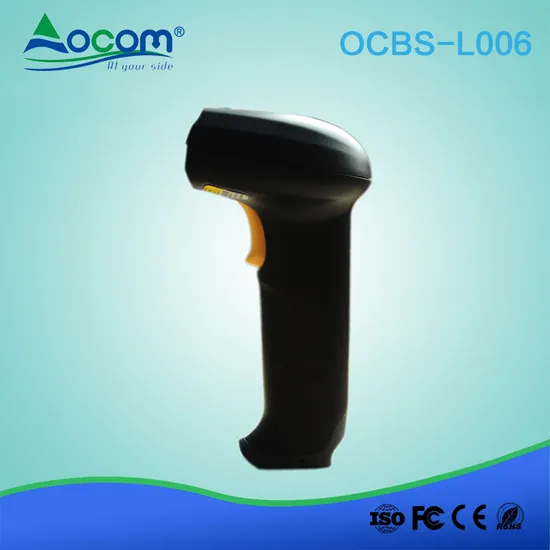

Mini Barcode Readers Long Working Time 32 Bit Handheld Laser Barcode Scanner for Retail Store

Product Description

Mini Barcode Readers Long Working Time 32 Bit Handheld Laser Barcode Scanner for Retail Store
(M/N:OCBS-L006)
Features: High scan rate and long reading distance; Excellent decode capability; KBW, RS232 and USB supported; Durable construction combined with future-proofing;
Specifications:

Performance Characteristics
Light Source:	Visible laser (650-670nm)
Scan Rate:	100 scans per second
Reading Distance	2.5 ~600mm (100% UPC/EAN)
Scanner Type:	Bi-directional
Resolution:	0.10mm (4mil) at PCS 0.9
Print Contrast Minimum:	20%, minimum reflective difference (@650nm)
Decode Capability:	UPC/EAN, UPC/EAN with supplemental, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, coda bar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5…
Physical Characteristics
Interfaces Supported:	PS2, RS232, USB
Voltage:	DC+5V+/-5%
Current:	100 mA
Idle Current:	<40 mA
Power Source:	Host power or external (RS232) power supply
Scanning Angle	Inclination 45° Elevation 60°
Dimensions:	L165.42mm X W69.72mm X H89.67mm
Weight:	140g (without stand)
Stand	Without
Color:	Ivory and black
User Environment
Operating Temperature:	0 Degree C~50 Degree C
Storage Temperature:	-40 Degree C~ 70 Degree C
Humidity:	5~95% relative humidity, non-condensing
Electrostatic Discharge:	Confirm to +/-15KV air discharge and +/-8KV of contact discharge
Drop Specifications:	Withstands multiple 1.5m drops to concrete
Safe:
EMI/RFI:	FCC Class A and CE
Laser Safety:	CDRH class 2 laser product

Product overview:
Company portfile:
Since 2007, OCOM is a leading One-stop POS and Auto-ID Related Products Supplier which is qualified by Global Fortune 500 company.
OCOM's products portfolio covers Thermal Printer, Barcode Printer, DOT Matrix Printer, Barcode Scanner, Data Collector, POS Machine, POS monitor, Customer Display, Cash Drawer, Magnetic Card Reader Writer, Money Counter, Barcode Scale, RFID, and other POS Peripherals products, which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications. We have CE, FCC, ISO and other required certifications.
OCOM's mission is to be the compelling choice for our partners, based on our three basic beliefs "Integrity based, Strive for excellence, Win-win cooperation", we established stable and reliable partnerships with customers all over the world. We were serving more than 3600 customers over 169 countries, 50 of them are the biggest distributors in their territory. Our main markets are in Europe, Australia, and fast growing South America and Africa. The customer list includes famous Unilever, O2, Equicom ...
OCOM's headquarter in Hong Kong, and the production line is located in Hunan and Shenzhen, which is the heart of the global electronic industry. OCOM have been sticking to the quality system of ISO9001: 2015. We make strictly IQC, IPQC and OQC inspection per industrial standard. All the products must pass 24-48 hours aging test before shipment. Some designated models can have as long as 24months warranty. We have the mass production capabilities that produce thousands of printers, scanners and other products a day. Based on our strong capacity, the normal lead time for main products is about 3 to 7 days even for bulk order.
Together we quest for the best!
FAQ:
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.

2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal.

3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers 'satisfication; We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time. Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty; Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework andanalysis.

4. Payment
Terms For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others.
About samples order,T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay

5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.

---
