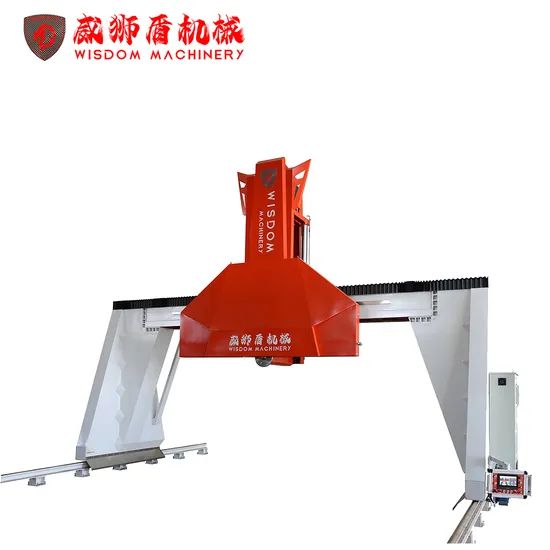

Wisdom Machinery Stone Rock Block Cutting Machinery for Quarry

Product Description

1. Super heavy duty Casted iron bridge
2. Super heavy duty double shaft gearbox transmission
3. 100Hp 75KW Blade motor
4. Blade Variable Frequency Drive to meet different cutting speed
5. 12 Meter Super Heavy Duty tracks
6. Auto on/off water
7. Multi rock programming, Auto continuous cutting multi blocks
8. Auto lubrication system
9. Easy operation interface available in English and Spanish
10. Metric and Imperial unit
11. Swivel Arm operator panel
12. Industry anti water Wireless controller
13. Super heavy steel wall
Specification

Main motor power	Unit	75KW 100HP
Max cutting width	mm	3500
Max lifting stroke	mm	2000
Max Blade size	mm	3600
Water consumption	M³/h	6
Weight	kgs	18000
Dimension	mm	8800*12000*8000

Product pictures

Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
Package and Loading
Similar Products
Other Products
FAQ
1. What is your Warranty Time
We provide 2 years free parts warranty for our bridge saw.
2. What is the MOQ?
1 Set
3. Can you make custimzed stone machine?
We have experienced and professional engineer, to make custmized stone machine is our advantage.
4. What is the lead time of your machine?
For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.

---
