Basic Info.
Transmission Type
Automatic
Dimension
12350*4000*2500mm
Rated Load on Platform
400kg
Transport Package
Comply with Export Packaging Requirements
Origin
Xuzhou, Jiangsu, China
Production Capacity
10000/Year
Product Description

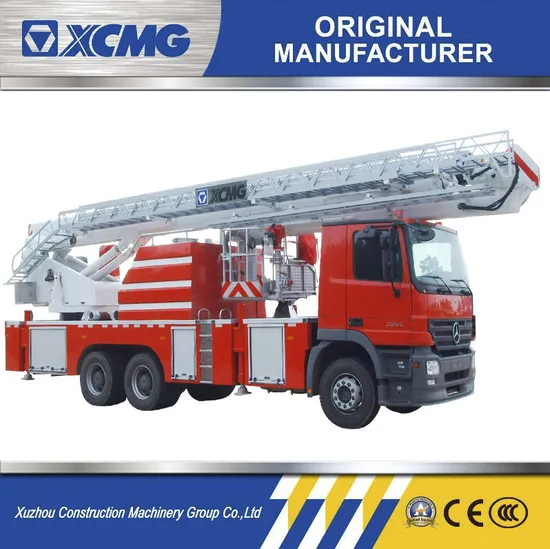

XCMG 30m Fire Truck DG34 Fire Fighting Truck for Sale.
DG34M1 aerial platform fire truck is the main battle vehicle integrates three functions of fire tanker, aerial spray truck, foam truck and aerial truck, which is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other medium and high-rise buildings, in addition, it also is the first choice for medium and high-rise building fires, rescue of persons in distress and properties.
The ladder truck uses a 3344 car chassis. The upper vehicle uses full swing, three-section telescopic arms and a curved arm structure. Electric control and hydraulic drive adopted in each moving mechanism brings the vehicle features of easy operation, flexible movement, safety and reliability and strong practicability. Deceleration and stopping at limit position are controlled by computer automatically, which makes operation quick, labor-saving, convenient and stable, also brings large speed regulating range, flexible fine motion and exact movements.
With the effective cooperation of straight telescopic boom plus folding boom, it is with excellent aerial obstacle-crossing capacity, which has the wider operation scope than the straight boom fire truck.
| Boundary dimension: (Length × width × height) | 12360×2500×4000mm |
| Full mass | 31020kg |
| Maximum speed | ≥100km/h (electronic speed limit) |
| Minimum turning diameter | ≤20m |
| Approach angle | ≥13° |
| Departure angle | ≥8° |
| Maximum gradeability | ≥25% |
| Outrigger span | Longitudinal span | 6200 mm |
| Horizontal span | 5800 mm |
| Work platform load | 400kg |
| Maximum working height | 34m |
| Maximum operating radius | 21m |
| Elevating angle of boom | The elevating angle of telescopic boom is -3°~82° |
| The elevating angle of folding boom and telescopic boom is 0°~175° |
| Rotation scope | 360°full-rotation |
| Spread time of outrigger | ≤30s |
| Time for lifting the boom to rated height and rotating 90° | ≤93s |
| Maximum slewing speed | 0.5~1.5r/min |
| Fire pump | Rated flow | ≥ 50 L/s |
| Rated pressure | ≥ 1.5 MPa |
| Fire fighting gun | Model | 3578+5177 | PS30-50D |
| Rated flow | 50 L/s(±8%) | 40L /s(±8%) |
| Rated pressure | ≤ 0.8 MPa | ≤ 1.0 MPa |
| Range | ≥ 70m | ≥ 65m |
>>
