US$2,000.00-3,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

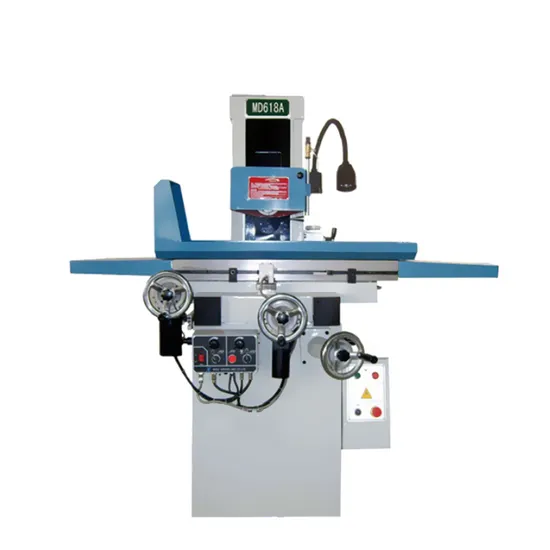

SURFACE GRINDING MACHINE FEATURES:
Product Description:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
SPECIFICATIONS:
| MODEL | MD618A |
| Working table | Table Size (L× W) | mm | 460×180 |
| Max movement of working table(L× W) | mm | 500×190 |
| T -Slot number×width | mm | 1×14 |
| Grinding head | Max distance from spindle center to table surface | mm | 335 |
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ180×13×Φ31.75 |
| Wheel speed | 50HZ | r/min | 2850 |
| 60HZ | | 3440 |
| | Longitudinal speed of working table | m/min | 3-20 |
| Feed amount | Cross feed of working table | Continuously(Variable Transmission) | mm/min | 150 |
Intermittently(Variable Transmission) | mm/times | 0-5 |
| Per revolution on handwheel | mm | 2.5 |
| Per graduation on handwheel | mm | 0.02 |
| Vertical feed on handwheel | Per revolution | mm | 1.25 |
| Per graduation | mm | 0.01 |
Commutation feeder | Total input power | w | 150 |
| X- feeder output speed | R/min | 0-225 |
| X- feeder size | mm | 280×130×120 |
| Y- feeder output speed | R/min | 0-120 |
| Y- feeder size | mm | 280×130×120 |
| Motor power | Spindle motor | kw | 1.1 |
| Coolant pump motor | w | 40 |
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 |
| Surface roughness | μm | Ra0.32 |
| weight | Net | kg | 667 |
| Gross | kg | 767 |
| Overall dimension(L×W×H) | mm | 1550x1150x1590 |
| Package dimension(L×W×H) | mm | 1000x1150x1760 |
>>
