Fast Electric Anchor Wire Rope Winch From China Factory

US$100.00-200.00 1 Piece (MOQ)

Basic Info.

Model NO.

NVT10000s

Pull Direction

Backward

Electric Winch Model

ATV

Working Voltage of Electric Winch

Low Voltage

Brand

Deso

Applicable Environment

Mountain Road

Certification

TUV, GS, ITS, CE

Payment

T/T L/C

Delivery Time

20-40days

Transport Package

Carton or Wooden Box

Specification

10000lbs

Trademark

Deso

Origin

China Mainland

HS Code

84253190

Production Capacity

2000PCS Per Month

Product Description

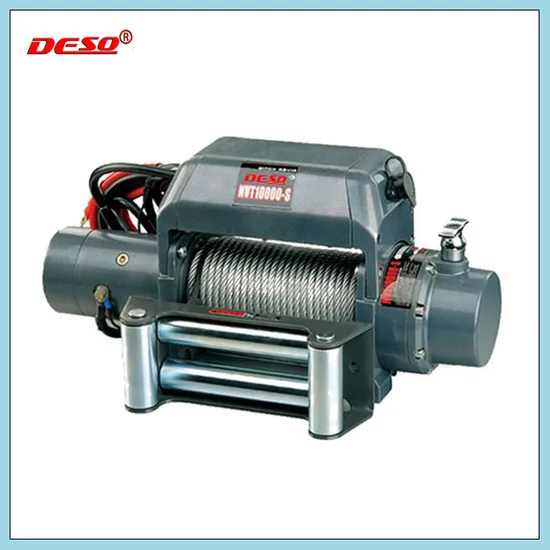

Electric Wire Rope Anchor Winch

NVT10000s

Rated line pull:10000lbs(4545kgs)single line

Motor(Series wound): DC 12V with 5.2hp/3.8kW output

Gear train:4 stage gear

Gear ratio:196:1

Clutch: Pull and Turn

Braking action: Automatic in the ratchet wheel

Fairlead:4-way roller fairlead

Wire rope:3/8"×85'(9.2mm×26m)

Drum size:2.48"×8.8"(63mm×224mm)

Dimensions:22.5"×6.2"×10.2"(610mm×158mm×260mm)

Bolt pattern:10"×4.5"(254mm×114.3mm)

Net Weight:92.1lbs(41.8kgs)

Line speed and motor current (first layer)
Line pull(Lbs/Kgs)	Line speed(FPM/MPM)	Motor current(Amps)
0/0	17.1/5.2	90
4000/1816	11.8/3.6	160
6000/2724	7.9/2.4	220
8000/3632	5.9/1.8	300
10000/4540	5.2/1.6	350
Line pull and cable capacity
Layer of cable	Rated line pull per layer(Lbs/Kgs)	Cable capacity per layer(Ft/M)

1	10000/4540	18.0/5.5
2	7900/3583	40.0/12.2
3	6600/2993	65.0/19.8
4	5600/2540	85.3/26.0

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
