Automatic Aluminum Profile Drilling Milling Machine Window Door Copy Milling Machine

US$16,500.00 1 Set (MOQ)

Basic Info.

Model NO.
LXF3A-CNC-2500
Structure
Mill Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
151-200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Application
Making Aluminum Window Door
Product Name
Aluminium CNC Copy Router Milling Machine
Work Material Type
Aluminium Profile
Material′s Workable Section Size
100X100mm (Widthx Height)
Maximum Workable Length
2500mm
CNC Axis Number
3
Spindle Rpm
18000
Spindle Power
4.5 Kw
PLC
Schneider
Transport Package
Iron Pallet, Container
Specification
2800x1850x2050
Trademark
Tianchen
Origin
Jinan, Shandong, China
HS Code
84614090
Production Capacity
50 Sets Per Month

Product Description

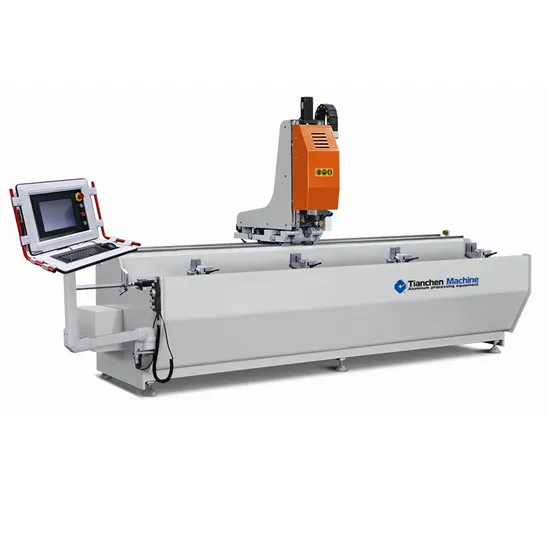

Automatic Aluminum Profile Drilling Milling Machine Window Door Copy Milling Machine
Machine Features:
1. Used for milling different size holes and grooves of aluminum profile
2. Adopt high precision linear guide pair, ball screw, rack and pinion and servo motor; insure the stable movement with high precision position and operation. X-axis is driven by rack and pinion; Y and Z axis is driven by ball screw.
3. Adopted imported high speed main axis motor, stable rotation, low noise, strong milling ability.
4. Milling table can be turned from -90°,0° and +90°to realize one time clamping three surface milling.
5. Adopted PLC, Intelligent Integrated Numerical Control System, concision and vivid human and machine interface to have easy operation.
6. CNC system: Delta
TECHNICAL PARAMETERS

Main Axis Rev./Power
18000 rpm/4.5KW
Tool Clamping Head
ER25-∮8
Processing Size
100 X100 X 2500 mm
Worktable Positon
-90°,0, +90°
X-way Travel (X-Axis)
2500 mm
Y-way Travel (Y-Axis)
330mm
Z-way Travel (Z-Axis)
300mm
X-axis Speed
0~60 m/min
Y-axis Speed
0~30 m/min
Z-axis Speed
0~30 m/min
Dimension
4000 X 1850 X 2050 mm
Weight
About 1400 kg
