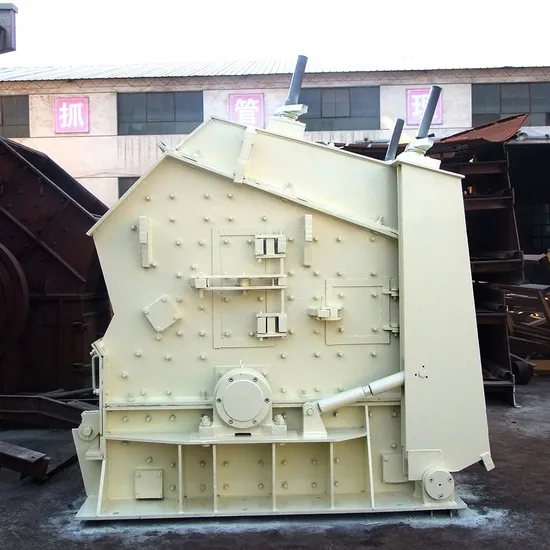

Stone Rock Concrete Aggregate Coal Limestone Mining Impact Crusher Granite Crusher

Product Description

Product Description
The impact crusher abosorbing advantages of similar products abroad, optimized design, crush material whose compression strength not more than 320Mpa, such as limestone, granite and basalt and etc. Enjoy the advantage of big crushing ratio, high crushing efficiency, even cubic discharging , convenient maintenance.
Packing:We use steel wire and wooden frame to fix the Stainless Steel Tube Welding Line.In addition, used shockproof film to protect the main motors.We use the container to deliver goods to our customer.
Shipping:We promise deliver the goods within 7-15 days after payment. Generally speaking, we start at Qingdao port, but we also can start at other port according to customer's need.
Product Parameters

Model	Specification	Feeding hole size (mm)	Max feeding size (t/h)	Discharging size(mm)	Capacity (t/h)	Motor (kW)	Weight (t)
PF-1007	φ1000x700	460x750	200	<30	30-50	37	10.5
PF-1010	φ1000x1050	460x1104	250	<50	50-80	55	13.4
PF-1108	φ1100x850	400x1080	300	<50	60-100	75	15.5
PF-1210	φ1250x1000	400x1080	350	<50	80-135	110	16.8
PF-1214	φ1200x140	480x1500	350	<20	100-180	132	20.5
PF-1310	φ1300x1050	490x1170	400	<20	120-220	160	24.3
PF-1315	φ1320x1500	860x1520	500	<50	130-250	210	26.8
PF-1520	φ1500x2000	860x2000	600	<50	310-580	315	50.6
PF-1820	φ1800x2000	1260x2040	700	<50	600-800	630	83.2

Detailed Photos
Certifications
Company Profile
Henan Xingkuang Machinery Co., Ltd.is a large sized enterprise integrated with the scientific research,production and sales of heavy mining machinery. With more than 60 years development, XKJ GROUP now the capacity increase can produce 3000TPD ore beneficiation equipment, building material, metallurgy. Our products now have exported to all over the world, such as Indonesia, Kenney, Tanzania, Peru, Philippine, India. Our company provide to clients project design, mineral test, workflow design, small and middle test and equipment installment test run one station service.

---
