Forestry Machine Mobile Tractor Diesel Sawdust Wood Chipper Machine with Trailer Industrial Drum Wood Chipper Shredder for Sale

Product Description

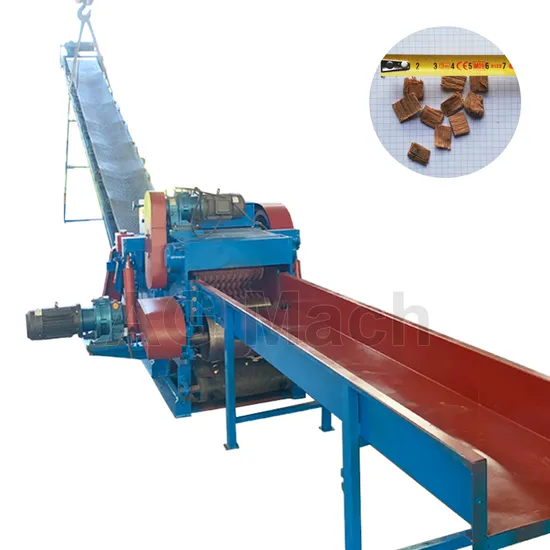

Large Output Forest Machinery Industrial Drum Wood Chipper Shredder Machine
Product Description:
The drum chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, the logs and small wood are cut into high quality with even length and uniform chip thickness.
It is also suitable for chipping of branches, twigs and planks. Cutting the main raw material of small diameter wood ,timber harvesting ,processing residues (such as branches ,twigs, slab, the log core veneer , waste),can also be used for cutting non-wood raw materials (such as sugar cane , reed , bamboo etc).
The chip length is different in accordance with the requirements of paper plants, particular broad and fiber-board industries. In order to meet this need, we have improved different kinds of drum chippers recently, and the new type machines have more advantages.
Technical Parameters:

Model	BX-313	BX-315	BX-316	BX-318
Main Power	30kw	45 kw	55 kw	110 kw
Capacity	2-3 t/h	3-5 t/h	8-12 t/h	15-25 t/h
Input max diameter	130mm	150mm	200mm	250mm
Q'ty of flying blades	4 pcs	4 pcs	4 pcs	4 pcs
Opener size	300*150mm	400*170mm	540*220mm	680*270mm
Size of wood chips	10-20mm	10-20mm	10-20mm	15-25mm

Product details:
Application:
Drum wood chipper machine is the production of wood and special equipment, this product is widely used in the particleboard plant, medium, high density fiberboard plant, plant straw, biomass power plant, wood chip plant and other industrial and manufactures in the production of the preferred stock preparation apparatus.
Structure & Operating principle:
The drum wood chipper machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts, hydraulic system components.
Knife roller mounted on two or three, the four sword, used specially manufactured flying bolt, via a pressure block, knife fixed on the knife roller, according to the cutting material of varying thickness, upper feed roll assembly can use hydraulic system in a certain range of floating up and down, cutting down the qualified materials through the sieve hole down, exhausted from the bottom, the sheet will be in the cutting machine. The hydraulic system is composed of oil pump for oil cylinder can be activated to ,cover, easy blade replacement, the repair can lift the upper feeding roller assembly, is convenient for adjusting knife, knife at the end of the gap and the comb assembly.
Final Wood Chips:
