480 back cover assembly machine electronic products manufacturing equipment

Product Details

Product Details

Product Description

Product Description
Shenzhen Keyuxin Automatic Machine Co., Ltd
TEL:18665307510
email: 570397983@qq.com

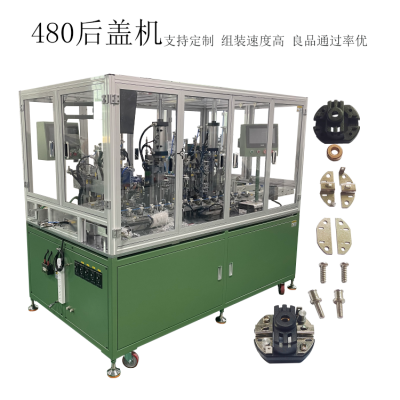

Motor rear cover assembly equipment introduction
Location processSample without capacitor: All materials are supplied by vibration plate (bearing is under discharging), and the appearance of the product is free from defects and meets the requirements of the drawing. Discharge docking three-piece assembly machine. For missing assembly and assembly errors there is sorting,
Rated input voltageAC220V /50HZ;
Air pressureThe working pressure is 0.5~0.7MP;
Air source interface dimensionsφ12 quick connector;
The discharging height of the equipmentThe discharging height of the finished motor rear cover is 700MM
Overall size and colorThe estimated length, width and height of the device 2000 x 1350 x 1800 (MM) are subject to the actual device dimensions
The overall structure is compact, paint parts color Wanbao to green;
The frame part adopts aluminum profile structure specification (40 x 40) mm, transparent acrylic;
The production efficiencyThe capacity of the equipment is 1000-1200 per hour
InterfaceMan-machine operation interface, with the necessary protection function;
Unparallel ease of useAfter loading the material, 1 manual guard, lack of material alarm function;
securityMust ensure safe operation and good grounding.
Ease of maintenanceUC-MAUC;
Basic Device ConfigurationBearing manufacturer Jingyi bearing
Optical fiber, sensor manufacturers Omron
Controller (PLC) manufacturer Xinjie
Operating panel (touch screen) manufacturer Xinjie
Motor manufacturer Oneng
Pneumatic components manufacturer AirTAC;
Buffer manufacturer AirTAC
Drawing list of wearing partsPG Flash
Support for custom attributes.
