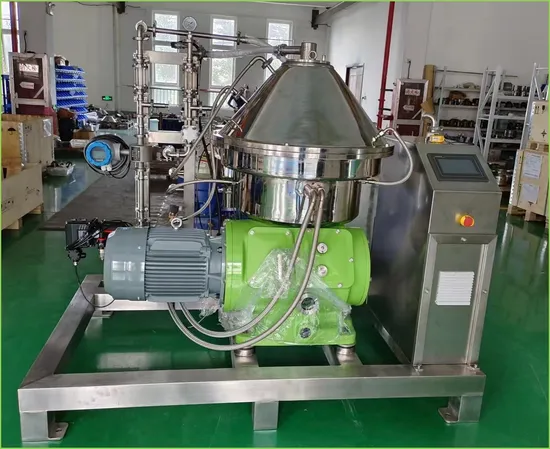

Automatic Control Liquid Solid Two-Phase Separation Disc Centrifuge Separator for Brewery Industry Beer

Product Description

Product Description Changzhou Qianmai Mechanical Equipment Technology Co., Ltd offers the DQBJ series separator, specially designed for the brewery industry. This separator is essential in beer production, providing efficient mechanical clarification separation. It effectively separates extremely fine particles from the liquid phase, enhancing the beer's transparency and clarity without compromising its active ingredients.
The use of oxygen isolation devices ensures the preservation of nutritional value and freshness, while also improving the beer's flavor and aroma. Our high-performance solutions guarantee high purity, quality, cost-effectiveness, and safety for our customers.

Features: Efficient separation of fine particles Preservation of active ingredients Enhanced flavor and aroma Cost-effective and safe Benefits: Clear and transparent beer Preserved nutritional value and freshness Improved flavor and aroma High purity and quality Typical Applications: Beer fermentation mash separation Whole cell collection of thallus Separation of cell wall breaking fragments
The separator treats the separation of liquid/solid two phase materials very efficiently.
- The separated particle size of non-emulsified liquid can reach ~ 2μm
- Solid particle size can reach ~ 0.5μm (density above 1.08g/ml)
- Beer yeast particle size is generally 5 ~ 8μm (density about 1.02g/ml)
Product Parameters
Maximum allowable drum speed: 6625 rpm
Motor speed: 1450 rpm
Motor frequency: 50 Hz
Maximum density of sediment/feed liquid: 1400/1100 kg/m3
Maximum/minimum feed temperature: 0/100 ° C
Maximum density of working fluid: 1000 kg/m3
Minimum/maximum emissions: 5/10 liters
Minimum/maximum emission interval: 1/60 minutes
Weight of separator (excluding motor): 1200 kg
Weight drum: 276 kg
Motor weight: 170 kg
Motor power: 50 HZ 15 kW
Power consumption (no load/full load): 10/15 kW
Start time (minimum/maximum): 4/6 minutes
Stopping time when braking (minimum/maximum): 6/10 minutes
Shutdown time without braking (minimum/maximum): 50-70 minutes
Maximum running time under idle drum condition: 15 minutes
Lubricating oil quantity: 20 liters

Machine Weight (Empty):	About 1250	Kg
Overall dimensions (length * width * height):	1400*1200*1420	mm

NOTE: it can be customized according to the actual needs of customers, and the parameters will change accordingly.

Company Profile
FAQ

Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd Are you looking for a reliable manufacturer with over 30 years of experience? Look no further! At Changzhou Qianmai, we have our own factory and a team of experts ready to meet all your mechanical equipment needs.
Our Services: Customized product design and manufacturing One-stop service from research to upgrade 24/7 online after-sales support Product Features: High-quality equipment tailored to your requirements Flexible payment terms for new and regular customers Various delivery options available based on your purchase order Fast delivery times, with expedited options for urgent needs 1-year warranty with additional instructions for special circumstances Contact Us: For more information or to schedule a visit to our factory, please reach out to us at your convenience. We are here to provide you with top-notch mechanical equipment solutions!

Application	Model	Treatment Capacity	Motor Power	Inlet Pressure	Outlet Pressure	Weight	Overall Dimensions
		(L/H)	(KW)	(MPa)	(MPa)	(KG)	(mm)
Animal Fat/Plant Oil	DQRE260	700-1500	3	0.05-0.1	≤0.3	280	620*500*1100
	DQBE260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBE350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFHE450	3000-4000	11	0.05-0.1	≤0.4	1450	1850*1550*1800
	DFHE610	6000-10000	22	0.05-0.1	≤0.4	2180	1980*1610*1950
Food/Beverage/Dairy	DQRP260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DQHN260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DQBP350	1200-2000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DQBN380	2000-3500	7.5	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQBN410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQHP510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHP610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Biological Fermentation	DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DFBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
	DFBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DFBS510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFBS610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Industrial Waste Liquid	DFBY200	200-1000	0.37	0.05-0.1	≤0.3	80	500*600*1200
	DFBY260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DFBY260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBY350	2000-3000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBY410	3000-4000	11	0.05-0.1	≤0.4	1600	1850*1550*1800
Chemical Liquid Coal Tar Marine/Mineral Oil	DFBY510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHY610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

---
