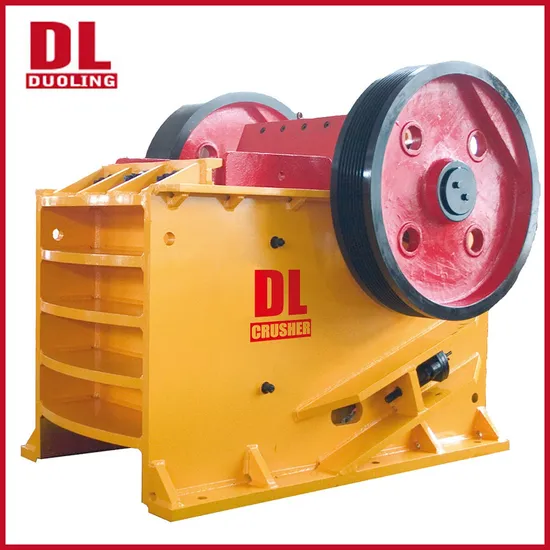

PE 600*900 River Stone Jaw Crusher Crushing Machine for Sale

Product Description

PE 600*900 River Stone Jaw Crusher Crushing Machine for Sale
Application of PE Series Jaw Crusher
Primary Crushing
Mining, Aggregate, Metallurgy, Industrial, Construction, Environmental.
Introduction of PE Series Jaw Crusher
The PE series jaw crushers manufactured by our company are designed for using in mines, quarries and other industrial applications, on the base of previous experience of sales at home and abroad assuring good reliability and high productivity. The size range of feed material (Maximum compression strength 300Mpa) is from 21 to 1200mm. They are the optimum equipment as primary jaw crushers.
Specifications of PE Series Jaw Crusher

Model	Feed Opening(mm)		Close Size Setting (mm)	Capacity (tph)	Power (kw)	Weight (ton)
	Width	Length
PE-500x750	500	750	50-120	50-150	55	11.2
PE-600x900	600	900	75-180	65-190	75	17.2
PE-800x1100	800	1100	90-220	140-320	110-132	29.6
PE-900x1200	900	1200	95-240	160-450	132-160	45.8
PE-1200x1500	1200	1500	150-300	430-880	160-250	79.4
PE1400x1800	1400	1800	185-300	500-1100	250-315	120

Working Principle
The motor transmits through belt,driving the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.
The angle between toggle plate and moving jaw plate increases when mobile jaw moves.So the mobile jaw moves towards the fixed jaw.
The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,
The moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Structural Drawing
Working Principle of PE Series Jaw Crusher
The motor transmits through belt,driving the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle
plate and moving jaw plate increases when mobile jaw moves.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
PE Series Jaw Crusher at Workshop
Duoling PE Series Jaw Crusher at site

---
