Ahyw High Quality CNC Press Brake Machine with Factory Price

Product Description

Product Description
Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

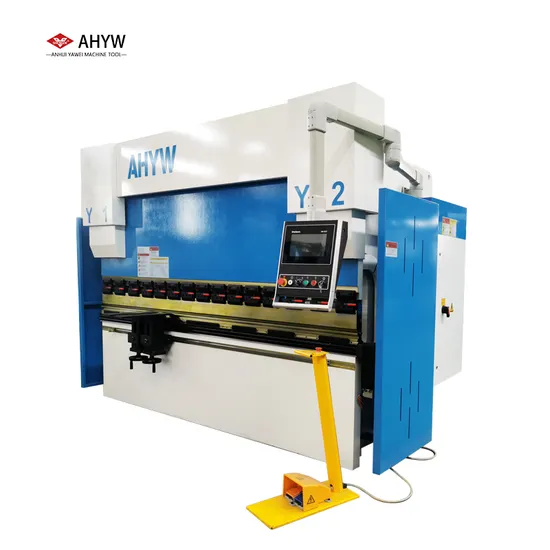

YWB Series 125T 3200 CNC BENDING MACHINE
Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
CNC press brake use for continues and complex working pieces manufacturing, advance in Efficiency. Basic features for AHYW cnc press brake machine • Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA52S CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure excellent performance Machine Block YWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time. CNC Backgauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
Details Images 42Crmo Toolings The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life. Mechanical Quick Clamps Using mechanical fast clamp for upper dies, changing dies more convenient and safe. Front Plate Support Movable front material support on linear guider can move left and right by hand very easy. KACON Pedal Switch KACON pedal switch from South Korea improving the service life and operational sensitivity. Germany Siemens Motor Using Siemens motor guarantee, the machine service, life and improve the machine, working stability. Ball Screw & Linear Guide Adopting SHAC ball screw and linear guide to improve the machine backguage accuracy. Technical Data

TYPE	Throat Depth (mm)	Worktable Length (mm)	Width (mm)	Dimension (mm)	Nominal Force (KN)	Slider Travel (mm)	Power (kw)
30t/1600	200	1600	60	2000*1800*2150	300	150	4
40t/2500	200	2500	60	3000*2000*2420	400	150	5.5
63t/1600	350	1600	60	3000*2000*2420	630	200	5.5
63t/2500	400	2500	60	3000*2000*2420	630	200	5.5
63t/3200	400	3200	60	3700*2000*2420	630	200	5.5
80t/2500	400	2500	70	3000*1800*2380	800	200	7.5
100t/3200	400	3200	70	3730*2000*2500	1000	200	7.5
100t/4000	400	4000	70	4500*2000*2500	1000	200	7.5
125t/3200	400	3200	70	3750*1950*2550	1250	200	7.5
125t/4000	400	4000	70	4550*1950*2550	1250	200	7.5
160t/3200	400	3200	70	3800*1950*2700	1600	200	11
160t/4000	400	4000	70	4600*2000*2670	2000	200	11
200t/3200	400	3200	250	3800*2000*2670	2000	200	15
200t/4000	400	4000	400	4600*2000*2670	2000	200	15
300t/4000	400	4000	260	4800*1980*3320	3000	300	22
400t/4000	400	4000	280	5100*2300*3420	4000	300	30

Company Profile
Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 61.88 million, with 300 employee, floor space about 49999 square meters, the location is close to Nanjing Airport and near to Shanghai city.
We specializes in manufacturing and selling CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world.
We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 100 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. We have more than 40 years of manufacturing and sales experience in the industry.
We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied.
Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at.
We want to cooperate with you to promote our sales and build a long-term cooperation with you for future business.
Best wishes for you and hope a better tomorrow for all of us!
Facilities & Equipment
Contact Us
Anhui Yawei Machine Tool Manufacturing Co., Ltd.
Add: Bowang Industrial Park, Ma'anshan City, Anhui Province, China

---
