Slope Roof Heat Pipe Solar Collector (INLIGHT-HC)

US$100.00-500.00 5 Sets (MOQ)

Basic Info.

Model NO.
INLIGHT-HC
Type
Pressurized
Application
Water Heater
Pipe Material
Glass,Copper
Transport Package
Inner Poly Bag With Outer Export Carton Packing
Specification
12-30 tubes
Trademark
INLIGHT
Origin
China(Mainland)
HS Code
8419901000
Production Capacity
1100 Sets/Month

Product Description

Heat Pipe Solar Collector
1. OEM availlable
2. Best in heating efficiency and antifreezing
3. For domestic or solar project
Features description:

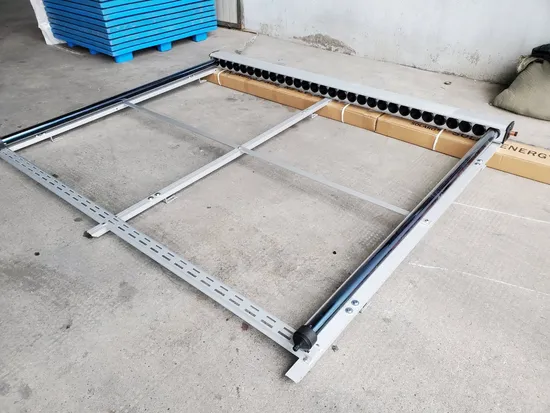

The heat pipe solar collector consists of heat pipe glass vacuum tube, pressurized manifold, suppoting bracket and other related accessories
1) Solar heat pipe and its inner midium for thermal conduction, with a quick start and super daily efficiency about 55% in summer and 42% in winter, much more than that of the all-glass tube
2) The flow passage is inner closed and pressurized, no water or medium goes through glass vacuum tubes, no freeze to break vacuum tubes, able to serve in extremely cold weather
3) Heat pipe tip is inserted into a closed cannula welded into the copper flow passage, collector works well even withdrawal one or several heat pipe vacuum tubes
4) Aluminum alloy as bracket with super performance in chemical resistance, universal bracket suitable for slope and flat roof installation
5) Modularized collector, arbitrary combination with any architectural structure, adaptable to either slope roof or flat ground or upright walls, almost maintenance free collector
Heat Pipe
Vacuum Tube

Size (mm)

Φ 47× 1500 Φ 58× 1800

Tubes (pcs)

12 / 15 / 20 / 25 / 30

Material

Three-target vacuum tube, red copper heat pipe, aluminum fin

Coating

Cu/SS-ALN(H)/SS-ALN(L)/ALN

Pressurized
Manifold

Flow passage

High-quality red copper Φ 35*1.0mm

Outer shell

Aluminum alloy plate 2mm

Insulation

Processed high-density rockwool/ polyurethane

Bracket

Aluminum alloy 1.8~2.0mm

Accessories

Stainless bolts & nuts, dustproof rubber seal, plastic tube holder

Working Pressure

12 bar

Tilt Angle

25° ~ 90° (-5° upright or level shift)

Hail Resistance

Φ 25mm diameter

Anti-freezing

≤ (-)35° C
