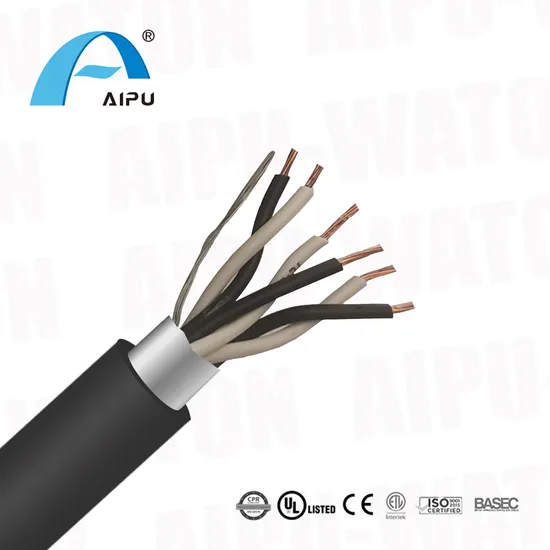

PAS5308 1.5mm Twisted Pair Instrumentation Cable Overall Screened LSZH/PVC/PE/XLPE Multipair Industrial Control Signal Communication Bulk Copper Cable 1mm

Product Description

Instrumentation Cable
Application
Manufactured to PAS5308, Instrumentation cables are intrinsically safe and designed for use in communication and instrumentation applications in and around process industries for transmission of signals in control systems. The signals can be analogue or digital from a variety of sensors and transducers.
Standards
PAS5308BS 50265BS EN/IEC 60332-3-24Flame propagation to BS4066 Pt1
Construction
Conductor: Plain Annealed Copper Conductors
Insulation: Polyethylene (PE)
Arranged: Laid up to form pairs
Tape: Aluminium / Mylar tape screen complete with 0.5mm2 drain wire
Sheath: LSZH

Installation Instructions
Voltage Rating: 300/500 Volts
Temperature limits: -20°C to +65°C
Minimum Bending Radius: As Per Manufacturers Datasheet
Electrical Perfromance

Conductor Size (mm2)	Conductor Class	Max. DCR (Ω/km)	Max. Mutual Capacitance Values pF/m		Max. Capacitance Unbalance at 1KHz (pF/250m)	Max.L/R Ratio (μH/Ω)
			Cables with Collective Screens (except 1pair & 2pairs)	1Pair & 2Pairs Cables Collectively Screened & All Cables with Individual Pair Screens
0.5	1	36.8	75	115	250	25
1.0	1	18.4	75	115	250	25
0.5	5	39.7	75	115	250	25
1.5	2	12.3	85	120	250	40

Identification of Cable Pairs

Pair No.	Colour		Pair No.	Colour
1	Black	Blue	11	Black	Red
2	Black	Green	12	Blue	Red
3	Blue	Green	13	Green	Red
4	Black	Brown	14	Brown	Red
5	Blue	Brown	15	White	Red
6	Green	Brown	16	Black	Orange
7	Black	White	17	Blue	Orange
8	Blue	White	18	Green	Orange
9	Green	White	19	Brown	Orange
10	Brown	White	20	White	Orange

Product Parameters
PAS/BS5308 Part 1 Type 1: Collectively Screened Unarmoured

No. of Pairs	Conductor		Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)
	Size (mm2)	Class
1	0.5	1	0.5	0.8	5.3
2	0.5	1	0.5	0.8	6.1
5	0.5	1	0.5	1.1	10.6
10	0.5	1	0.5	1.2	14.0
15	0.5	1	0.5	1.2	16.1
20	0.5	1	0.5	1.3	18.4
1	1	1	0.6	0.8	6.4
2	1	1	0.6	0.8	7.4
5	1	1	0.6	1.1	13.2
10	1	1	0.6	1.2	17.4
15	1	1	0.6	1.3	20.3
20	1	1	0.6	1.5	23.4
1	0.5	5	0.6	0.8	6.0
2	0.5	5	0.6	0.8	6.9
5	0.5	5	0.6	1.1	12.1
10	0.5	5	0.6	1.2	16.2
15	0.5	5	0.6	1.3	18.8
20	0.5	5	0.6	1.3	21.3
1	1.5	2	0.6	0.8	7.3
2	1.5	2	0.6	0.9	8.7
5	1.5	2	0.6	1.2	15.4
10	1.5	2	0.6	1.3	20.6
15	1.5	2	0.6	1.5	24.2
20	1.5	2	0.6	1.5	27.5

PAS/BS5308 Part 1 Type 1: Individually & Collectively Screened Unarmoured

No. of Pairs	Conductor		Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)
	Size (mm2)	Class
2	0.5	1	0.5	0.9	8.5
5	0.5	1	0.5	0.9	10.9
10	0.5	1	0.5	1.1	15.6
15	0.5	1	0.5	1.2	18.1
20	0.5	1	0.5	1.3	20.4
2	1	1	0.6	0.9	10.3
5	1	1	0.6	1.0	13.5
10	1	1	0.6	1.2	19.4
15	1	1	0.6	1.4	22.7
20	1	1	0.6	1.5	25.7
2	0.5	5	0.6	0.9	9.7
5	0.5	5	0.6	1.0	12.6
10	0.5	5	0.6	1.2	18.0
15	0.5	5	0.6	1.3	20.9
20	0.5	5	0.6	1.4	23.6
2	1.5	2	0.6	1.0	12.1
5	1.5	2	0.6	1.1	15.8
10	1.5	2	0.6	1.4	22.9
15	1.5	2	0.6	1.5	26.6
20	1.5	2	0.6	1.6	30.1
