6*RS232 serial port,COM1 RS232 DB9, COM2 RS232/485/422 DB9, COM3~6 on the 2*8pin Phoenix terminal

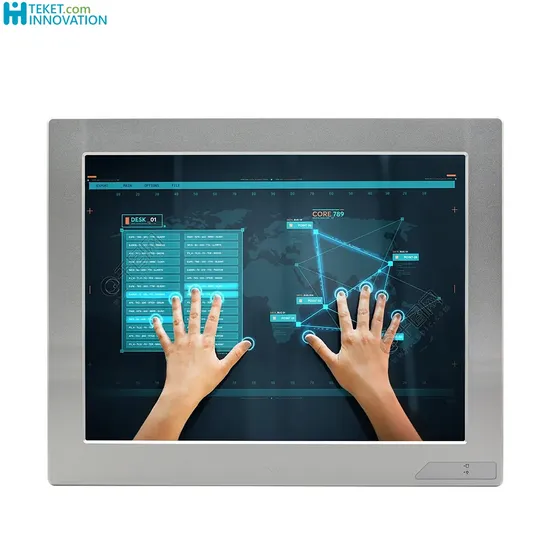

15" Industrial Touch Panel PC 15" 1024x768 resistive touch screen 1*HDI 1*VGA 1*LAN(Intel RTL8111H) 6*COM 1+6*USB 1*SIM DC9-36V Silver
| Model number | P150Z-R16 V1.0 (J1900) |
| chassis | Material/Structure | Aluminum alloy + sheet metal material, fanless cooling structure |
| colour | Bright silver |
| Dimensions (length, width and height) | W299 L369 * * H53.8 mm |
| Weight (bare weight) | 3.43 KG |
| Install | Support VESA installation/embedded panel installation |
| LCD screen | type | 15 inch LCD |
| Resolution | 1024 x 768 |
| luminance | 350 cd/m2 |
| Touch screen | type | Resistance type |
| Light transmittance | More than 80% |
| Main board | CPU | Integrated Bay Trail Intel®Celeron J1900/2.00GHz quad-core quad-thread processor with 10W TDP power consumption |
| reveal | Integrated Intel®HD Graphics core graphics card |
| Internal memory | 1*SODIMM slot, supporting single-channel DDR3L 1333 MHZ memory, supporting a maximum of 8GB |
| IO interface | POWER | 1* Power switch, 1*ACLOSS |
| LED | 1* Power indicator, 1* hard disk indicator |
| Display interface | 1*VGA, 1*HD OUTPUT, support single or dual display |
| LAN | 1*Realtek8111H Gigabit electrical port, support network wake up /PXE |
| USB | 1*USB3.0, 6*USB2.0 (1*USB2... 0 built-in, 1 USB2.0 on the front panel is not available by default) |
| COM | 6*RS232 serial port, COM1 RS232 DB9 serial port, COM2 support RS485/422, COM3~6 RS232 On the 2*8pin Phoenix terminal, COM1~2 support 9pin live function |
| Phoenix terminal | 2*8pin Phoenix terminal (including 4*RS232/ power indicator/hard disk indicator/switch signal/reset signal) |
| Audio frequency | 1*Line out, 1* MIC |
| Power source | 1*DC 12V power input port |
| store | SATA | 1 x 2.5-inch hard disk |
| MSATA | 1*MSATA slot, transmission rate up to 3Gbps |
| extend | Mini PCIE | 1*Mini-PCIE slot, supporting WIFI/4G module |
| | Windows | Windows 7 |
| System support |
| | Linux | Ubuntu |
| | Power supply type | External power adapter |
| Power demand | Voltage input | DC 12V |
| | Power output | AC TO DC |
| environment | Operating temperature | -10ºC to 50ºC |
| Storage temperature | -20ºC to 70ºC |
| Relative humidity | 5%-95% relative humidity, no condensation |
| Working vibration | 0.5g rms/5-500HZ/random/operating |
