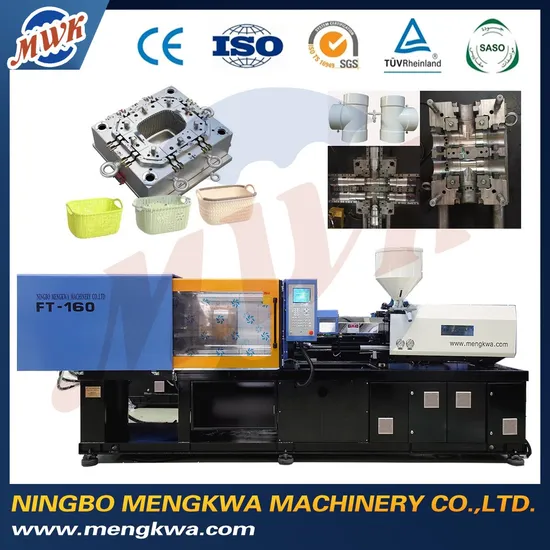

Injection Molding Machine 120 Ton Molding Machine Injection Molder

Product Description

Plastic Injection Machine Servo Motor Control
pvc injection machine
Specification for 120t :

Item		Unit	MWK-120
Injection device	Screw diameter	mm	40	42	45
	L:D	L/D	20	19	17.8
	Theoretical injection volume	cm3	182	201	233
	Injection weight	g	164	181	210
	Injection rate	g/s	80	86	105
	Plasticing pressure	g/s	14.6	17.8	20.9
	Injection pressure	Mpa	168	152	140
	Screw speed	rpm	0-200
Mold locking device	Clamping force	KN	1200
	Injection stroke	mm	155
	Die shifting stroke	mm	320
	Tie rod spacing (W x H)	mm	385×350
	Die thickness	mm	150-400
	Ejection stroke	mm	75
	Ejection force	KN	33
Other	Max. oil pump pressure	Mpa	16
	Oil pump motor power	kw	11
	Electrothermal power	kw	6.2
	Overall dimension (L x W x H)	m	4.0×1.25×1.75
	Machine weight	t	3.3

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
