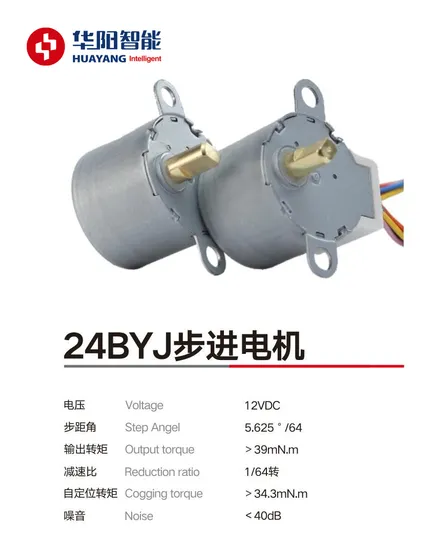

24byj Swing Motor for Home Applications 12V DC Stepper Motor

US$1.00 1,000 Pieces (MOQ)

Basic Info.

Model NO.
24BYJ
Number of Stator
Four-Phase
Excitation Mode
PM-Permanent Magnet
Function
Control, Driving
Number of Poles
12
Operate Mode
Three Phase Double Beat
Type
Electromechanical
Certification
ISO9001, CCC, VDE
Brand
Huayang
Transport Package
Carton Box
Specification
200 pcs
Trademark
Huayang
Origin
China
HS Code
8501109990
Production Capacity
150000000

Product Description

Product Description Our company is an advanced leading Chinese manufacturer and supplier, which provides high performance products and efficient international services to the world.we focus on producting varies kinds of reduction stepper motors,synchronous motors,micro water pumps,which are widely used in air-conditioner,refrigerator,intelligent sanitary,automatic door lock,monitor,electronic instruments.All of our products can be customized.Our stepper motors are used widely in the valve control system,air-condetioner,sanitary ware,CCTV monitoring system,industrial automation control,and other industries.Following is the parameters of the 24BYJ48 stepper motor: Phase: 3 Certification: CCC, CE, ISO, ROHS, UL Step Angle(degrees): 5.625°/64 Rated voltage: 5v 12v 24v DC Slow dow rate: 1/64 Detent Torque: >34.3mN.m noise: <40dB Useage: Home Appliance
Huayang stepper motor products are widely used in the fields of household appliances,cleaning equipment,pump products and industrial automation,such as air condioner,washing machines,dishwashers ,vacuum cleaners,etc.With the improvement of living standards, more and more families get surveillance camera. The corresponding surveillance camera motor market is developing rapidly.
Performance Parameters
Model Voltage
V
Resistance (Q)/Phase (at 25ºC)
(Ω)
Operating
Frequenc (PPS)
Pull-in Torque
(mN.m) 100PPS
Detent
Torque
(mN.m)
Max. Freeload
Pull-in
(PPS)
Max. Freeload
Pull-out
Frequency
(PPS)
Temperature
Rise
K
Noise dB
(A)
Step Angle
(1-2Phase)
nsulation
Class

24BYJ48
5 60 100 ≥29.4 ≥29.4 ≥500 ≥900 ≤40 ≤40
5.625°/64
E
12 200 100 ≥29.4 ≥29.4 ≥500 ≥900 ≤40 ≤40
12 250 100 ≥29.4 ≥29.4 ≥500 ≥900 ≤40 ≤40
12 300 100 ≥29.4 ≥29.4 ≥500 ≥900 ≤40 ≤40
12 300 100 ≥58.8 ≥29.4 ≥500 ≥900 ≤40 ≤40
12 200 100 ≥9.8 ≥7.35 ≥300 ≥600 ≤40 ≤40 5.625°/16

Mechanical Dimensions:mm
